Removing and installing headlight washer jets
Removing and installing headlight washer jets
Special tools and workshop equipment required

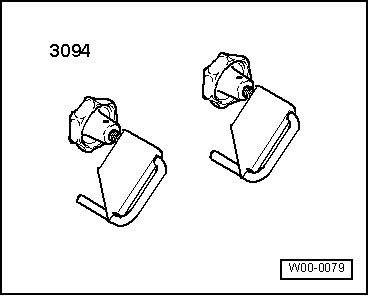

t  Hose clamps up to 25 mm -3094-
  W00-0079
Removing
–  Remove air intake grille → Rep. gr.63.
–  Open cover -7- for washer jet.
–  Press down retaining springs -4, 6- with a small screwdriver and release washer jet -5-.
–  Press washer jet out of mounting -3- towards rear -arrow-.
  A92-10261
–  Disconnect fluid hose -1- using hose clamp -3094-.
  Note
Place a cloth underneath to catch escaping fluid.
  A92-10204
–  Disconnect washer fluid hose -2-; to do so, pull release tab -1-.
  Note
If the washer jet cannot be removed as described owing to the specification of the vehicle, the relevant headlight housing must be removed. Removing headlight housing:
t  Halogen headlights: vehicles up to model year 2012 → Chapter, vehicles from model year 2013 onwards → Chapter.
t  Gas discharge headlights: vehicles up to model year 2012 → Chapter, vehicles from model year 2013 onwards → Chapter.
  A92-10261
Installing
Installation is carried out in the reverse order; note the following:
–  Retaining springs -3- and -4- on washer jet -2- will not engage audibly unless side guide -1- is correctly inserted in retainer -5-.
–  Install air intake grille → Rep. gr.63.
  A92-10201
