A4 Mk3

Removing and installing wiper arm
Removing and installing wiper arm
Special tools and workshop equipment required

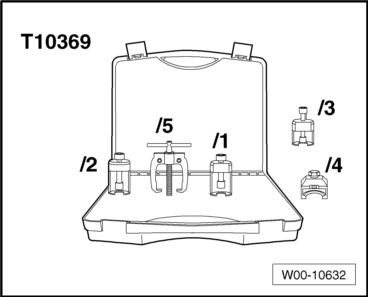

t  Tool kit for wiper arms -T10369-
Removing
–  Switch on ignition.
–  Actuate „rear wiper“ and allow wiper arm to move to end position.
–  Switch off ignition and take out ignition key.
  W00-10632

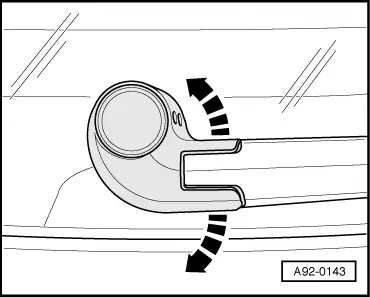

–  Carefully pry cap apart slightly -arrows- and lift off.
  A92-0143
–  Carefully detach washer jet -2-.
–  Slacken securing nut -1- one turn.
  A92-0144

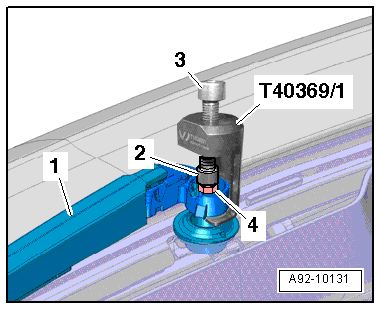

–  Place an M6 nut -4- on top of securing nut.
–  Apply puller -T10369/1- at wiper arm -1- as shown in illustration.
–  Apply thrust piece -2- at wiper shaft.
–  Turn bolt -3- clockwise until wiper arm is clear of wiper shaft.
–  Remove nut and detach wiper arm.
Installing
Installation is carried out in the reverse order; note the following:
–  Adjust wiper arm → Chapter.
  A92-10131
