A4 Mk3

Removing and installing washer jets
Removing and installing washer jets

Removing

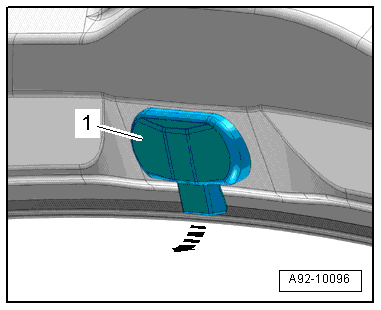

–  Unclip washer jets -1- from underneath bonnet -arrow-.
  A92-10096

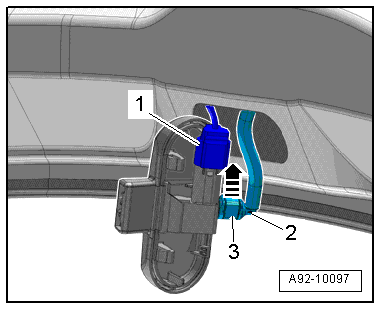

–  Release retaining clip -3- in direction of -arrow- and disconnect washer fluid hose -2- from windscreen washer jet.
–  Unplug electrical connector -1- if fitted.
Installing
Installation is carried out in the reverse order; note the following:
–  When fitting washer fluid hose, make sure that retaining clip engages audibly in connection on washer fluid hose.
–  Insert washer jet in bonnet.
  A92-10097
