Removing and installing fuse holder ASA in luggage compartment
Removing and installing fuse holder A -SA- in luggage compartment

Removing
–  With ignition switched off, disconnect earth cable at battery → Chapter.
–  Remove mounting -1- for tool kit.
–  If fitted, remove subwoofer -1- → Rep. gr.91.
  Note

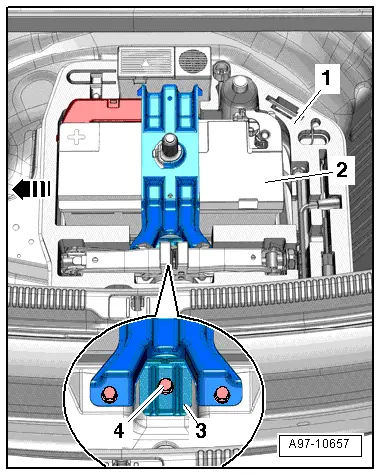

If fuse holder A cannot be detached from battery terminal, unscrew bolt -4- on battery retainer plate -3- and pull battery -2- out of battery retainer and slightly towards left -arrow-.
  A97-10657
–  Loosen nut -1- several turns and disconnect battery clamp of positive cable together with fuse holder A from battery terminal.

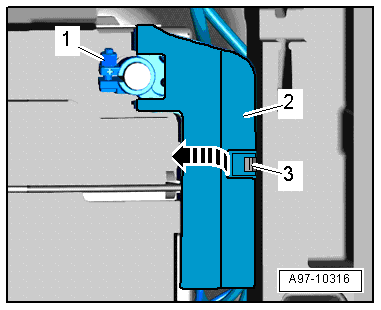

–  Release retaining clip -3- and open cover -2- of fuse holder A -arrow-.
  A97-10316

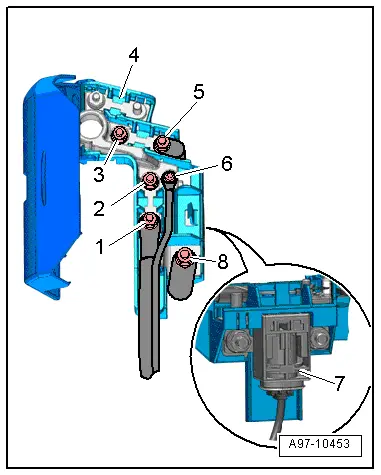

–  Unscrew electrical wires -1, 5, 6, 8-.
–  Detach battery clamp -4- of positive cable from battery terminal together with fuse holder A.
–  Remove battery isolation igniter -N253--item 7- → Rep. gr.69.
–  Take out fuse holder A.
  Note
Exact assignment of contacts in fuse holder A can be found in applicable current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Installing
l  Tightening torque → Fig.
Installation is carried out in the reverse order; note the following:
–  Install battery isolation igniter -N253- → Rep. gr.69.
–  Fit retainer plate → Anchor.
–  Connect battery. Steps required → Anchor.
  A97-10453
