Removing and installing terminal 30 wiring junction 2TV22
Removing and installing terminal 30 wiring junction 2 -TV22-

Removing

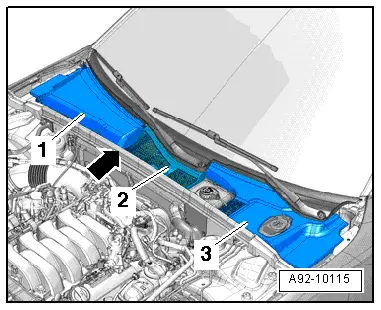

Vehicles up to 05.2008:
–  Unclip plenum chamber cover -2- and detach.
  Note
Disregard -items 1, 3- and -arrow-.
  A92-10115

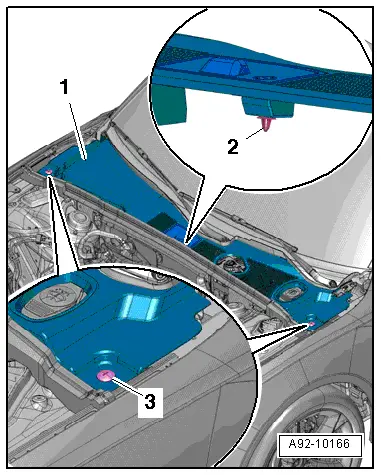

Vehicles from 06.2008 onwards:
–  Remove bolts -3-.
–  Unclip retaining clips -2- from retainer and detach plenum chamber cover -1-.
  A92-10166
All vehicles (continued):

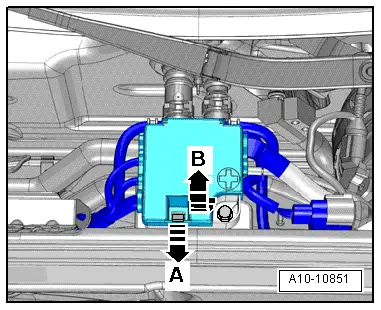

–  Release catch -arrow A- and open cover -arrow B-.
  A10-10851
–  Unscrew electrical wires -1, 2, 3, 5, 6, 9-.
–  Remove bolt -8- and detach terminal 30 wiring junction 2 -TV22- from body brace.
  Note
Disregard -items 4, 7 and 10-.
Installing
l  Tightening torque → Fig.
Install in reverse order.
  A97-10479
