A4 Mk3

Removing and installing special vehicle control unitJ608
Removing and installing special vehicle control unit -J608-

Removing
–  With ignition switched off, disconnect earth cable at battery → Chapter.
–  Open cover in luggage compartment side trim (right-side).

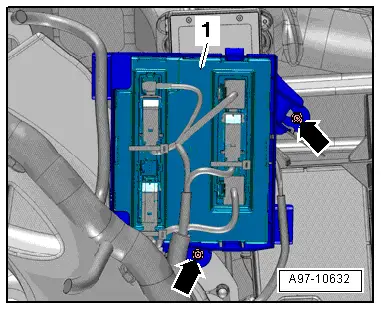

–  Remove nuts -arrows- and place mounting frame -1- with convenience system central control unit -J393- to one side.
  A97-10632

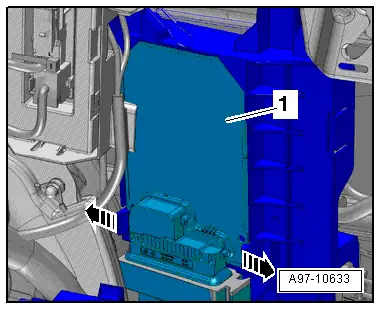

–  If fitted, release retaining clips -arrows- and remove electronically controlled damping control unit -J250--item 1- from mounting frame.
  A97-10633

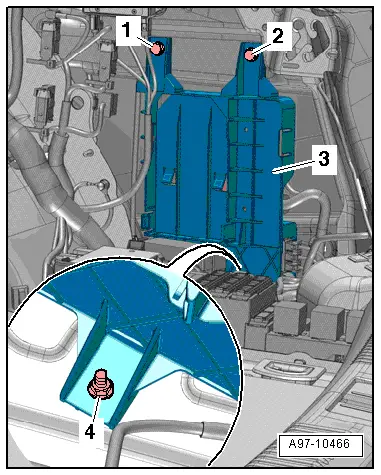

–  Remove bolts -1- and -2- and nut -4-.
–  Swivel mounting frame -3- with control units to side.
–  Unplug electrical connectors at control units in mounting frame.
–  Remove mounting frame with control units.
  A97-10466

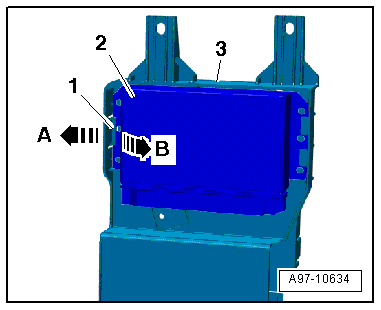

–  Press retaining clip -1- in direction of -arrow A- and swivel special vehicle control unit -J608--item 2- in direction of -arrow B- out of mounting frame -3-.
Installing
l  Tightening torque → Fig. and → Fig.
Installation is carried out in the reverse order; note the following:
–  Connect battery. Steps required → Anchor.
  A97-10634
