Removing and installing mounting for relay and fuse carrier with onboard supply control unitJ519
Removing and installing mounting for relay and fuse carrier with onboard supply control unit -J519-

Removing
–  Remove side air vent in dash panel (left-side) → Rep. gr.70.
–  Remove bolt -arrow- at air duct -1-.
  Note
The air duct does not have to be removed.
  A87-10471
–  Remove onboard supply control unit -J519- → Chapter.
–  Slide through extension with socket between air duct -3- and central tube -4- and remove nut -2-.
–  Guide extension with socket around side of mounting -6- (as shown in illustration) to remove nut -5-.
–  Pull mounting off studs.
–  Push mounting towards inside of vehicle to disengage retaining pin -1- on mounting at side guide in A-pillar -arrow-.
  A97-10658
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter

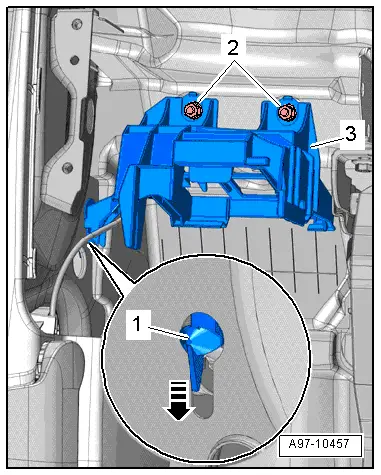

–  Engage retaining pin -1- on mounting -3- at side guide in A-pillar -arrow-.
–  Tighten nut -2-.
–  Install air duct to dash panel vent (left-side) → Rep. gr.87.
–  Install side air vent in dash panel (left-side) → Rep. gr.70.
  A97-10457
