Electrical system; General information|Wiring > < Removing and installing socket for towing bracket - version 3

A4 Mk3

Pin assignment at socket for towing bracket

Pin assignment at socket for towing bracket

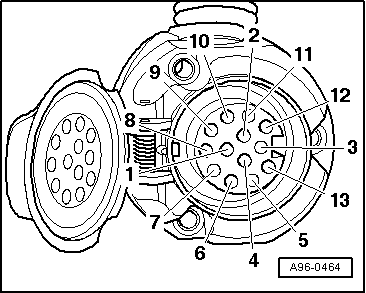

Socket for towing bracket, 13-pin (country-specific version)
1 - Terminal BL - turn signal (left-side)
2 - Terminal NSL - rear fog light
3 - Terminal 31 - earth
4 - Terminal BR - turn signal (right-side)
5 - Terminal 58 R - tail light (right-side)
6 - Terminal 54 - brake light
7 - Terminal 58 L - tail light (left-side)
8 - Terminal RF - reversing light
9 -  → Current flow diagrams, Electrical fault finding and Fitting locations
10 -  → Current flow diagrams, Electrical fault finding and Fitting locations
11 -  → Current flow diagrams, Electrical fault finding and Fitting locations
12 -  → Current flow diagrams, Electrical fault finding and Fitting locations
13 -  → Current flow diagrams, Electrical fault finding and Fitting locations
Socket with rear fog light cut-out contact switch -F216-:
Pin assignment at rear fog light cut-out contact switch -F216- → Current flow diagrams, Electrical fault finding and Fitting locations
