Removing and installing voltage regulator - Valeo alternator from 2007 onwards
Removing and installing voltage regulator - Valeo alternator from 2007 onwards
Special tools and workshop equipment required
t  Feeler gauge, 0.3 mm

Removing
–  Remove alternator → Electrical system; Rep. gr.27.

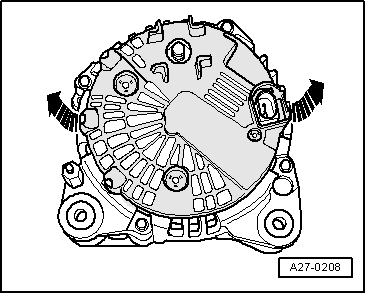

–  Press cover on rear of alternator off studs -arrows-.
  A27-0208

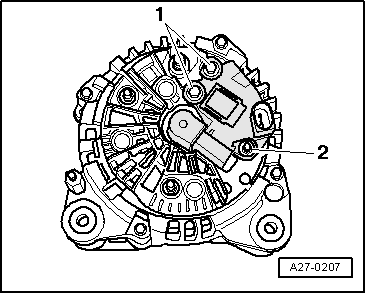

–  Unscrew bolts -1- and centre hex stud -2-.
–  Remove voltage regulator.
  A27-0207
Installing

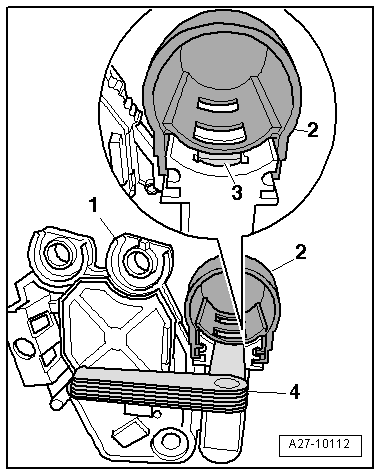

–  Insert 0.3 mm feeler gauge -item 4- between protective cap -2- and carbon brushes -3-.
–  Pull protective cap off only as far as point where projection on protective cap keeps carbon brushes pressed down.
–  After installing voltage regulator, press protective cap on as far as stop.
Further installation is carried out in the reverse order; note the following:
–  Install alternator → Electrical system; Rep. gr.27.
l  Tightening torque → Chapter
  A27-10112
