Corrosion protection
Corrosion protection
  Caution
Risk of corrosion.
A lack of corrosion protection will ultimately cause damage to the vehicle's electrical system.
  Note
t  All screw connections must be tightened to the specified torque.
t  To protect from corrosion, use hose attached to can of anti-corrosion agent.
t  Use anti-corrosion wax for cold sections and cavity sealing agents for hot sections.
t  Capillary attraction causes anti-corrosion agent to be drawn to the affected areas automatically.

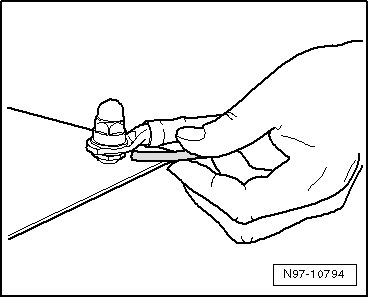

–  Hold injector underneath wiring lug and spray all around terminal.
–  Hold injector above wiring lug and spray terminal and wiring lug (all around).
  N97-10794
