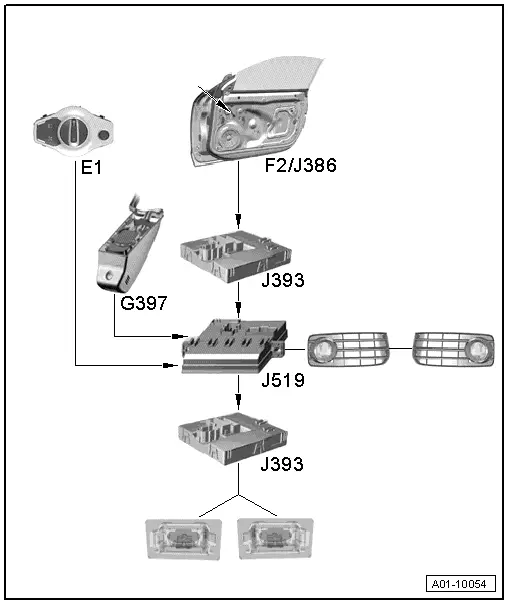

| The function starts when the ignition is switched off and the driver's door is opened. The ignition key may still be in the ignition lock. Also, the rain and light sensor must be signalling »darkness« to the onboard supply control unit -J519-. |
| The opened door is detected by the driver door contact switch -F2-. The driver door control unit -J386- scans the switch status and places the information on the data bus. |
| The fog lights are then switched on by the onboard supply control unit -J519-, and the rear lights and number plate light are switched on by the convenience system central control unit -J393-. On vehicles with bi-xenon headlights, the side lights are also switched on. |
| The lights are switched off after the time set on the MMI. This time begins when the last door (or rear lid) is closed. |
|
|
|
