| Also, the rain and light sensor must be signalling »darkness« to the onboard supply control unit -J519-. |

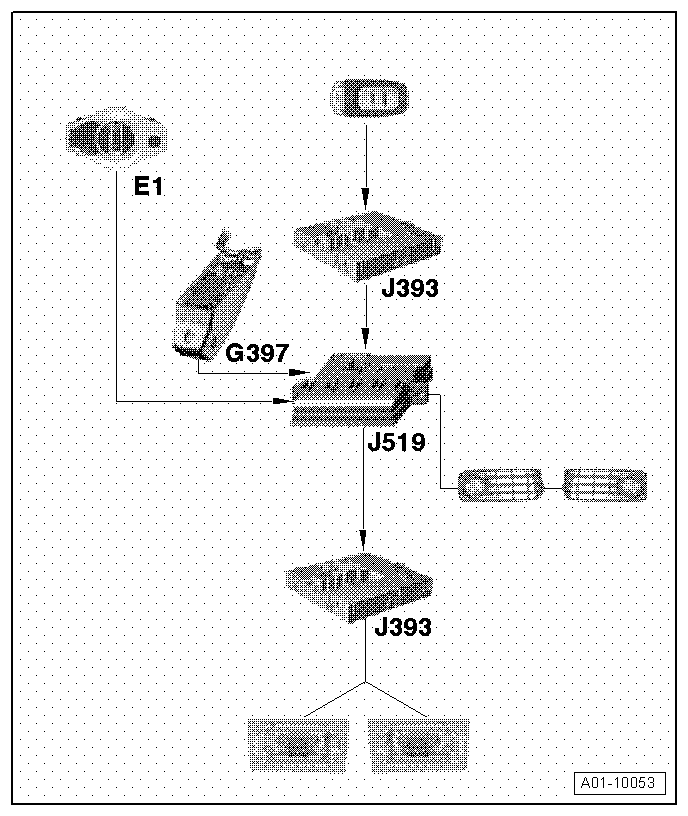

| The status of the unlocked vehicle is placed on the data bus by the convenience system central control unit -J393-. If the other conditions are also met, the function is activated. The fog lights are then switched on by the onboard supply control unit -J519-, and the rear lights and number plate light are switched on by the convenience system central control unit -J393-. The function terminates when the ignition is switched on or at the latest one minute after the lights have been activated. |
|
|
|
