Technical data (MMI2G up to week 45/08)
Technical data (MMI2G up to week 45/08)

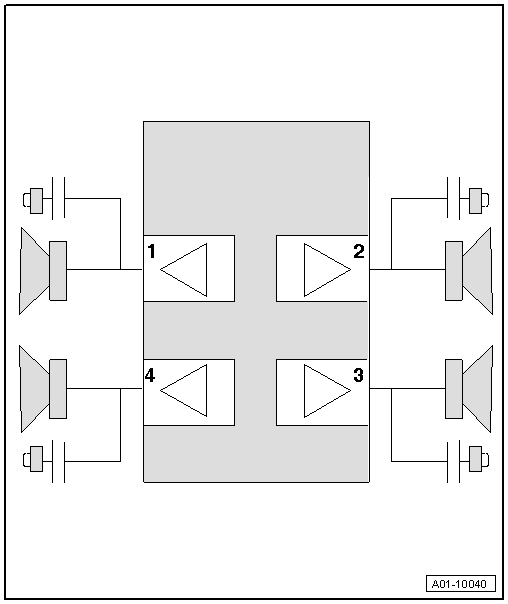

Basic sound amplifier

Channels4
Number of microphones0
Output20 watts per channel
Surround functionNo


 - Basic sound amplifier

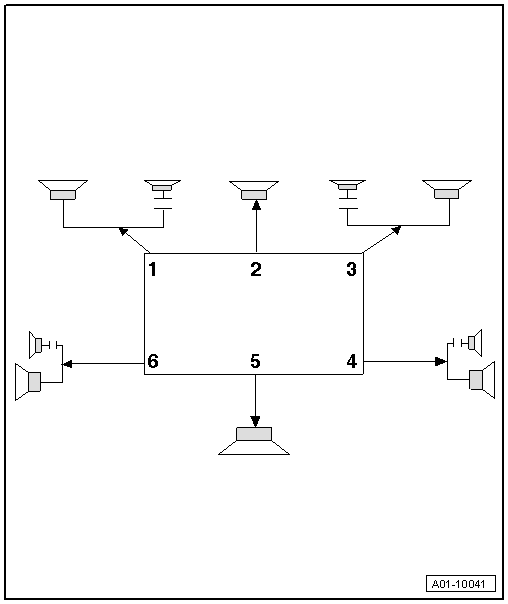

Standard sound amplifier

Channels6
Number of microphonesmax. 1 (only in vehicles with speech control system)
Output3 x 20 watts, 3 x 40 watts
Surround functionNo


 - Standard sound amplifier

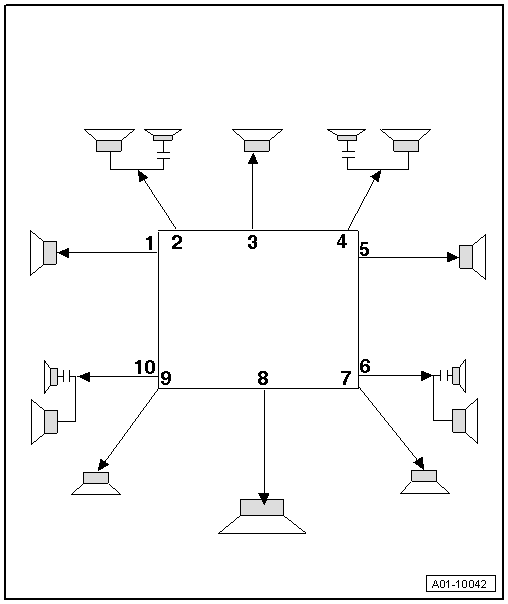

Premium sound amplifier

Channels10
Number of microphonesat least 1 (due to background noise compensation), max. 2 (in vehicles with speech control system)
Output4/5 x 25 watts, 4 x 43 watts, 1 x 100 watts
Surround functionYes


 - Premium sound amplifier
