A4 Mk3

Exploded view of components for light alloy wheels
Exploded view of components for light alloy wheels
  Note
t  On rims with bonded wheel trims, take care not to scratch the wheel trims.
t  Wheel trims have a very sensitive surface.
t  If a wheel trim is damaged, the rim must be renewed.

t  The wheel trim cannot be renewed.

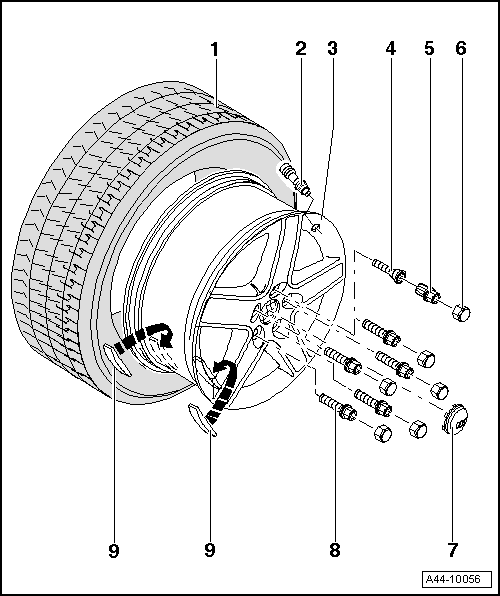

Overview of light alloy wheel
Wheel change/wheel fitting instructions → Chapter
  A44-10265
1 - Tyre
2 - Valve
q   Always renew
q   Use only correct valves as specified in → Electronic parts catalogue
3 -  Wheel
q   Observe the fitting instructions → Chapter
4 - Wheel bolt
q   Observe the fitting instructions → Chapter
q   Tightening torques for wheel bolts → Chapter
q   Anti-theft wheel bolt → Fig.
5 - Adapter for wheel bolt
q   Attach to corresponding wheel bolt → Fig.
6 - Cap for wheel bolts
7 - Trim cap
8 - Wheel bolt
  Note
t  Make sure that the correct type of wheel bolts are fitted; refer to → Electronic parts catalogue.
t  Always use the same type of wheel bolts on all four rims of a vehicle.
q   Observe the fitting instructions → Chapter
q   Tightening torques for wheel bolts → Chapter
9 - Adhesive balancing weights
q   Not more than 60 g permitted per rim flange
q   Remove dirt and grease from wheel rim at bonding point
q   Pull off backing foil
q   Bond on balancing weights at surfaces provided for this purpose
