A4 Mk3
|
|
|
|
|
Note| The trim element cannot be removed without being damaged irreparably. |

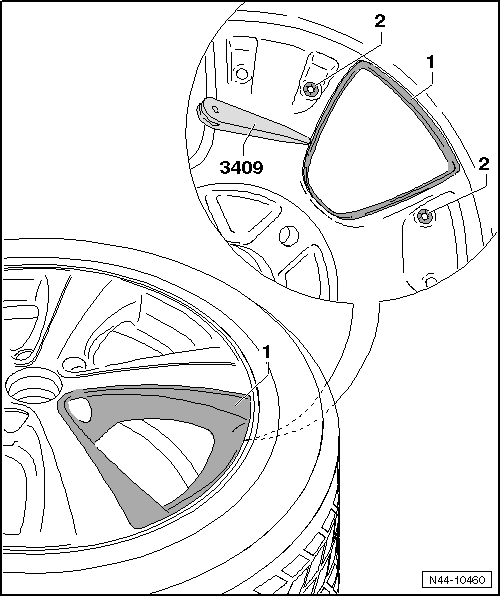

| – | Release lock washers -2- on inside of light alloy wheel. |

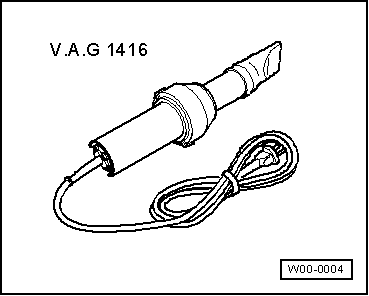

| – | Heat trim element -1- from outside with hot air blower -V.A.G 1416-. |
Caution
|

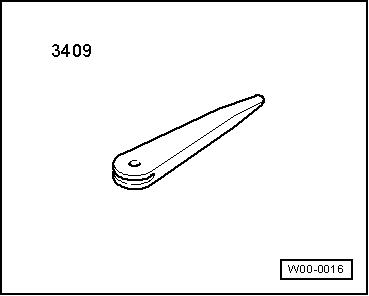

| – | Release trim element -1- from inside of light alloy wheel using removal wedge -3409-. |
| – | Reach under one of the corners from outside and pull trim element -1- firmly off light alloy wheel. |
Note| t | Remove the spots of PUR adhesive from the light alloy wheel by cutting them off. |
| t | Remaining material can be used as an adhesive base for the new trim element. |
| t | The new trim element can be fitted immediately → Chapter. |
