A4 Quattro Cabriolet V6-3.0L (BGN) (2005)
/Page-592001.png)
Timing Belt: Service and Repair

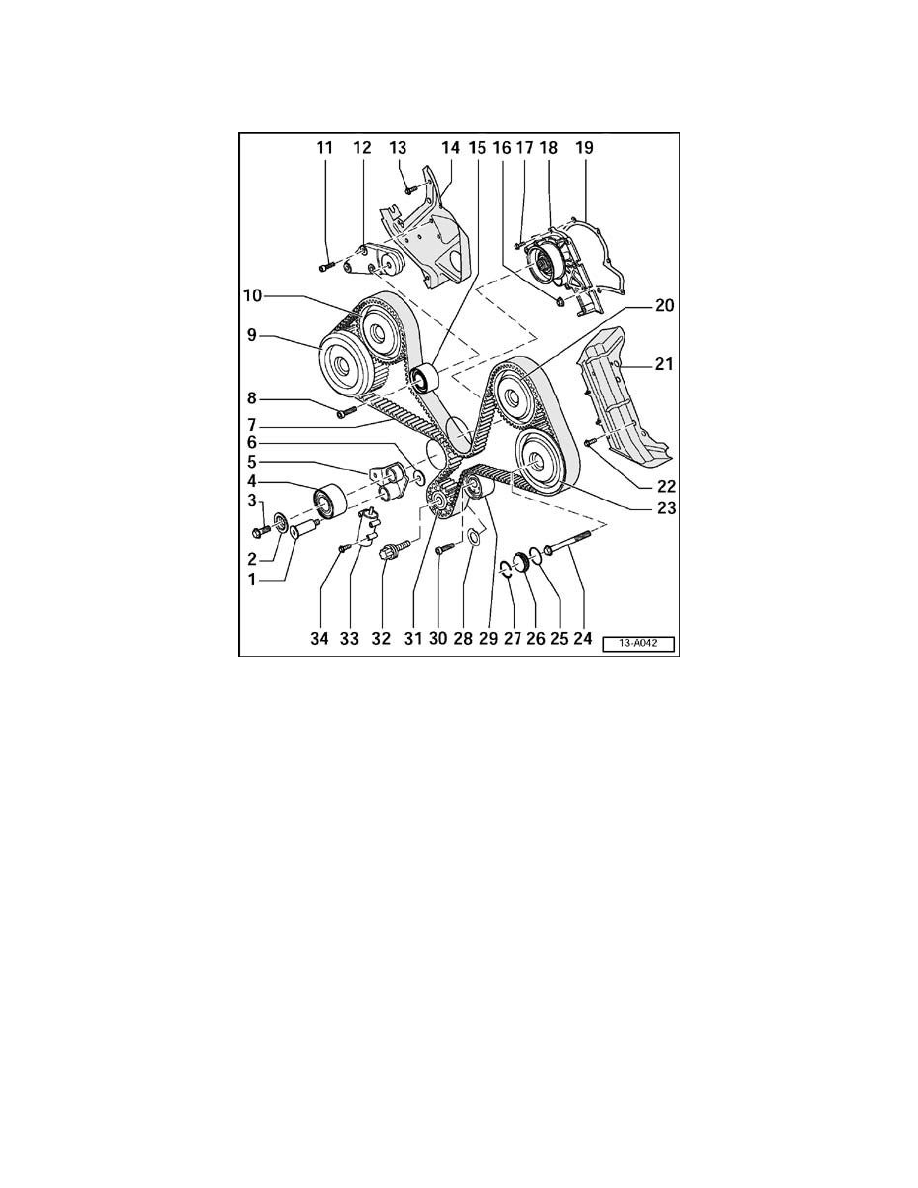

Toothed Belt Drive, Assembly Overview
Toothed belt drive, assembly overview
Note: Before removing toothed belt, note direction of rotation with chalk or felt-tip marker. Reversing the direction of rotation of a run-in belt can
destroy the belt.
1. 45 Nm
^
Self-locking
^
Always replace
2. Washer
3. 45 Nm
4. Tensioner roller
5. Tensioning lever
^
Insert shim item -6-
6. Washer
^
For tensioner lever
7. Toothed belt
^
Before removing, note direction of rotation using chalk or felt-tip marker
^
Check for wear
8. 45 Nm
9. Exhaust camshaft, toothed belt gear
^
For cylinder bank 1 (right) with vibration damper With camshaft adjuster Identification Exhaust
10. Intake camshaft, toothed belt gear For cylinder bank 1 (right)
^
With camshaft adjuster
^
Identification Intake
