Fuel Pressure Sensor/Switch: Testing and Inspection
Fuel Pressure Sensor G247 , Checking

Fuel Pressure Sensor G247, Checking

Special tools, testers and auxiliary items required

-

Multimeter.

-

Wiring diagram.

Test requirements

-

The Fuel Pump (FP) Control Module J538 OK.

-

The Engine Control Module (ECM) J623 fuses OK.

-

The fuel filter OK.

-

The battery voltage at least 12.5 V.

-

All electrical consumers switched off (radiator fan must NOT run during test).

-

A/C switched off.

-

The fuel tank at least 1 / 4 filled.

-

The ignition switched off.

Procedure

-

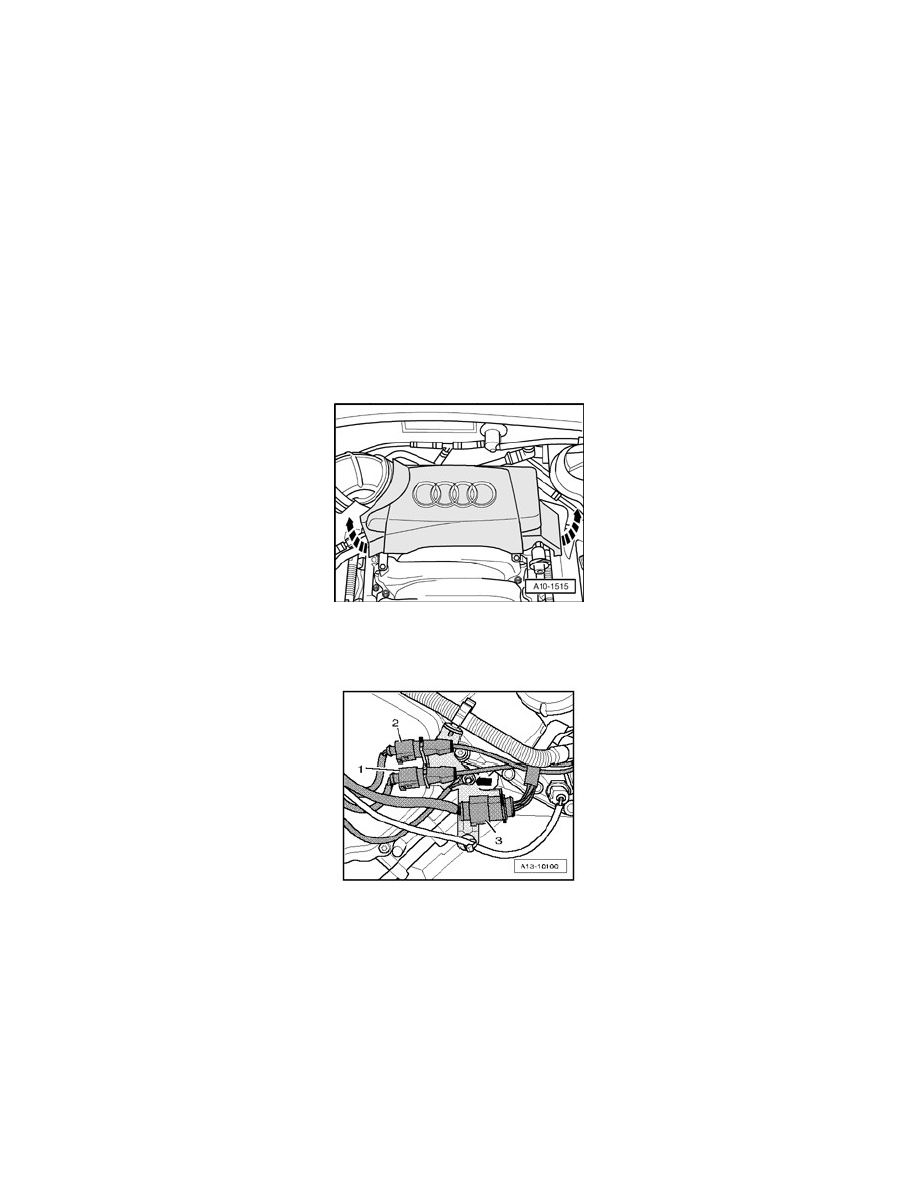

Remove the rear engine cover - arrows -.

Checking voltage

-

Disconnect the 14 pin electrical harness connector - 3 - on the left rear side of the engine.

-

Switch the ignition on.

-

Using a Multimeter, check the Fuel Pressure Sensor G247 for voltage at the 14 pin electrical harness connector.

Fuel Pressure Sensor G247 electrical

Specified

harness connector terminals

value

1 to Battery positive (+)

Battery voltage (+)

2 to Ground (GND)

Battery voltage (+)

3 to Ground (GND)

about 5 V

-

Switch the ignition off.

If the specified values are obtained:

-

Replace the Fuel Pressure Sensor G247.
