Fuel Distance/Mileage Module: Testing and Inspection
Consumption Signal For Board Computer, Checking

Consumption Signal For Board Computer, Checking

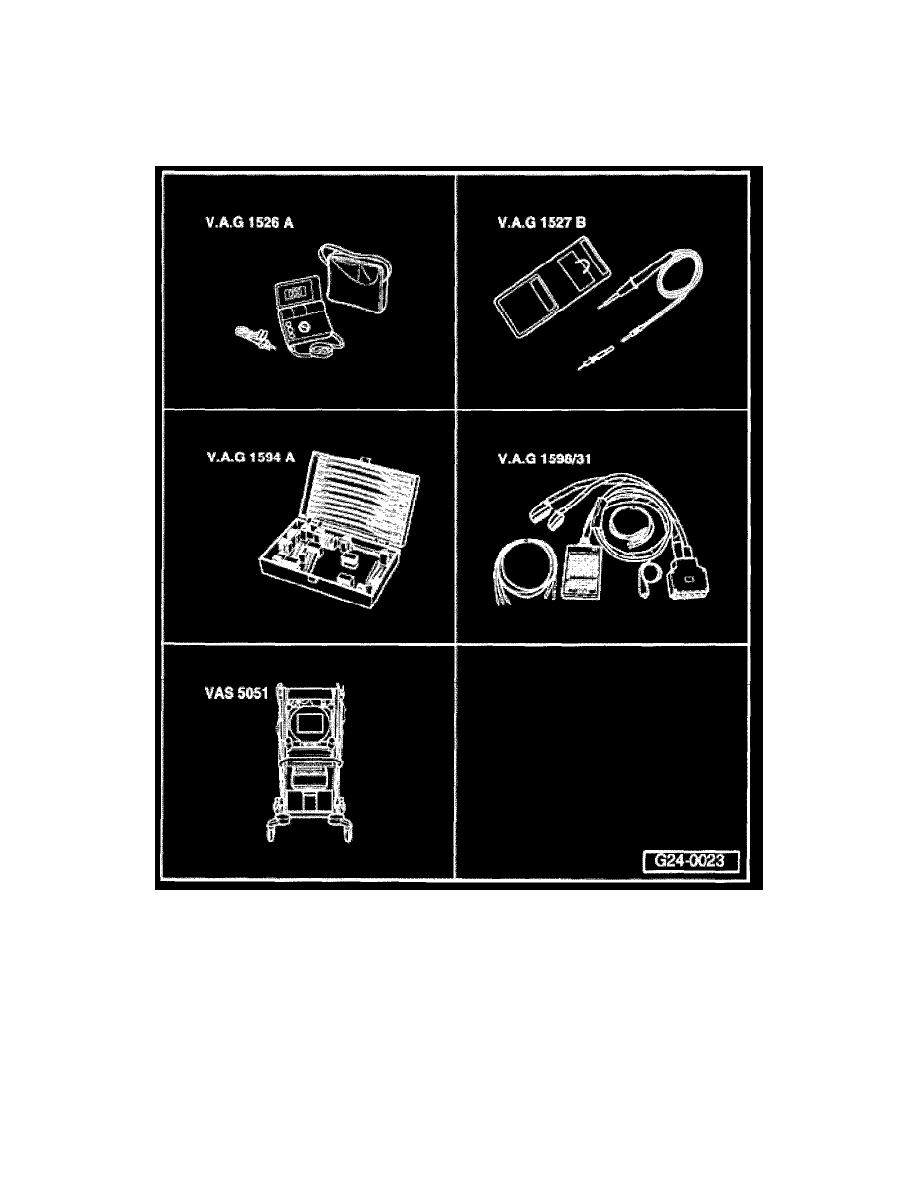

Special Tools and Equipment

-

VAG1526A

-

VAG1527B

-

VAG1594A

-

VAG1598/31

-

VAS5051 with VAG5051/1

NOTE:  The consumption signal is transferred from the Engine Control Module (ECM) to the instrument cluster via CAN-bus. Check data exchange
between Engine Control Module (ECM) and other CAN capable control modules.

Relays and Modules > Relays and Modules - Instrument Panel > Fuel Distance/Mileage Module > Component Information > Testing and Inspection > Consumption Signal For Board Computer, Checking
