Location on gearbox

Location on gearbox
t  -Arrow A- Manual gearbox 0B1 → Fig.
t  -Arrow B- Code letters and production date → Fig.
t  -Arrow C- Code letters and production date on underside of gearbox housing (not on all versions)
  A00-10629

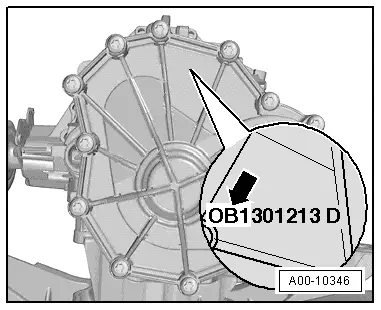

Manual gearbox 0B1 -arrow-
  A00-10346

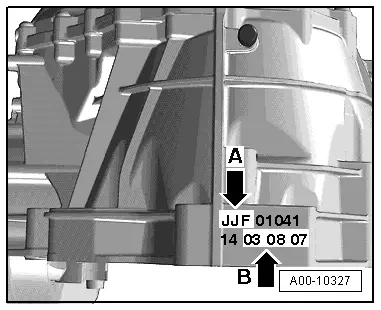

Code letters -arrow A- and production date of gearbox -arrow B-
  A00-10327
Example:JJF03 08 07
 Code lettersProduction date: 03.08.2007

  Note
t  Additional data are manufacture-related.
t  The code letters for the gearbox are also given on the vehicle data stickers.
