Removing and installing valve for oil pressure controlN428

Removing and installing valve for oil pressure control -N428-

Special tools and workshop equipment required

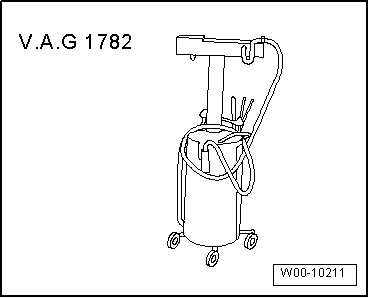

t	Used oil collection and extraction unit -V.A.G 1782-

Removing

–	Remove noise insulation → Rep. gr.66.

–	Position used oil collection and extraction unit -V.A.G 1782- below engine.

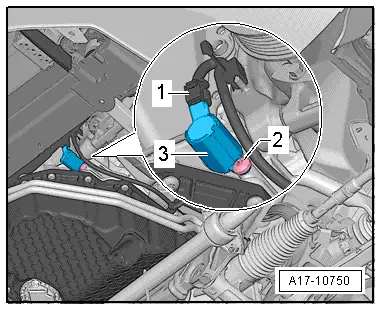

–	Unplug electrical connector -1-.

–	Remove bolt -2- and detach valve for oil pressure control -N428--3-.

Installing

Installation is carried out in the reverse order; note the following:

l	Tightening torques → Chapter „Sump/oil pump - exploded view“

Note

Fit new O-ring.
