Removing and installing oil cooler
Removing and installing oil cooler
Special tools and workshop equipment required

t  Used oil collection and extraction unit -V.A.G 1782-
  W00-10211
Removing
–  Drain coolant → Chapter (or in vehicles equipped for a hot climate: remove continued coolant circulation pump -V51- → Chapter).

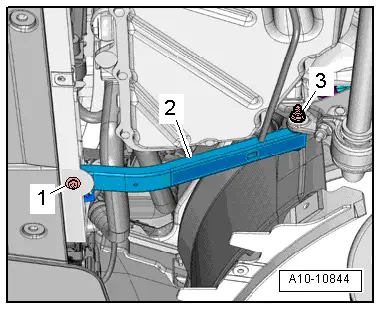

–  Remove bolt -1- and nut -3- and detach strut -2- (left-side) for lock carrier.
  A10-10844

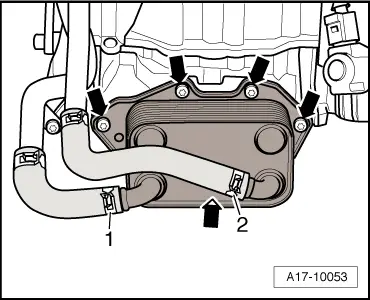

–  Detach coolant hose -1- and, if necessary, -2- from oil cooler; release hose clip to do so.
–  Position used oil collection and extraction unit -V.A.G 1782- below engine.
–  Unscrew bolts -arrows- and remove oil cooler.
Installing
l  Tightening torque → Chapter.
Installation is carried out in the reverse order; note the following:
  Note
t  Renew seals and gaskets.
t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue.
–  Install continued coolant circulation pump -V51- → Chapter.
–  Install strut for lock carrier → Rep. Gr.50.
–  Check engine oil level → Booklet811, → Booklet812 or → Booklet818.
–  Fill up with coolant → Anchor.
