Removing and installing oil pressure switchF22 - engine codes CCLA, CCWA, CCWB, CGKA, CGKB >
< Checking oil pressure switchF1/oil pressure switchF22/oil pressure switch for reduced oil pressureF378
A5
Power unit
6-cylinder TDI engine (2.7 ltr.; 3.0 ltr. 4-valve common rail), mechanics
Engine lubrication
Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch
Removing and installing oil pressure switchF1 - engine code CAPA
Removing and installing oil pressure switchF1 - engine code CAPA
Removing and installing oil pressure switch -F1- - engine code CAPA
Special tools and workshop equipment required
t

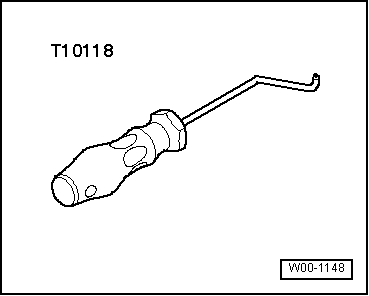

Assembly tool -T10118-
t
Articulated wrench, 24 mm -T40175-
Removing
–

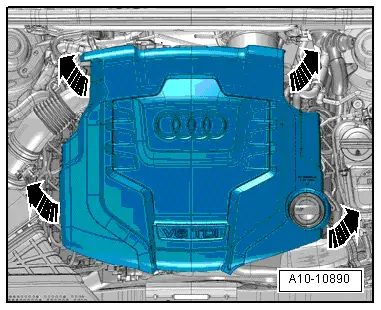

Remove engine cover panel
-arrows-
.
–

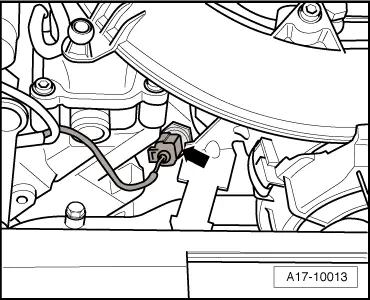

Use assembly tool -T10118- to unplug electrical connector
-arrow-
.
–
Use U/J extension socket, 24 mm -T40175- to unscrew oil pressure switch -F1-.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch - exploded view“
Note
Renew seal.
Power unit
6-cylinder TDI engine (2.7 ltr.; 3.0 ltr. 4-valve common rail), mechanics
Engine lubrication
Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch
Removing and installing oil pressure switchF1 - engine code CAPA
Removing and installing oil pressure switchF22 - engine codes CCLA, CCWA, CCWB, CGKA, CGKB >
< Checking oil pressure switchF1/oil pressure switchF22/oil pressure switch for reduced oil pressureF378
