Renewing fog light bulb L22/L23
Renewing fog light bulb -L22-/-L23-

Removing
–  Loosen front section of front wheel housing liner → Rep. gr.66.

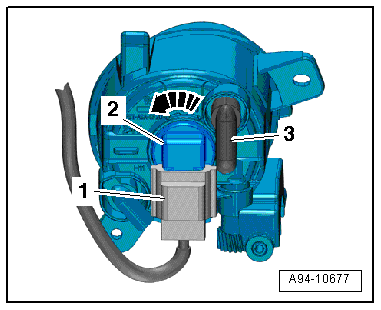

–  Unplug electrical connector -1- at bulb.
–  Detach breather hose -3- from fog light (left-side).
–  Turn bulb -2- anti-clockwise -arrow- and pull it out of fog light housing.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert new bulb in housing; do not touch glass part of bulb with bare hands.
–  Secure bulb by turning clockwise.
–  Attach breather hose to fog light (left-side).
–  Install front wheel housing liner → Rep. gr.66.
  A94-10677
