Body Emblem: Service and Repair
Emblem

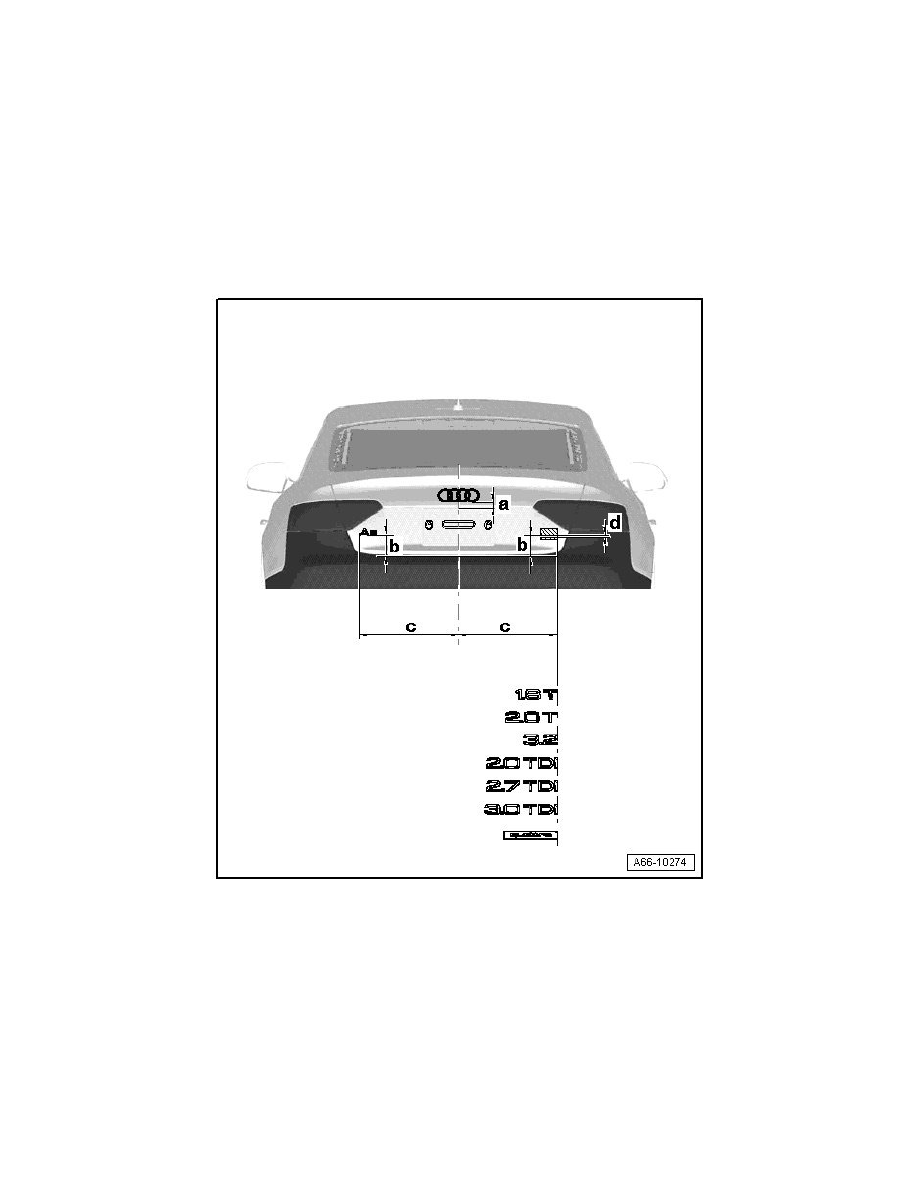

=> [ Emblem Dimensions ]
Emblem Dimensions
CAUTION!
‹› The adhesive surfaces on the body must be free of dirt and grease.
‹› Clean the adhesive surfaces using cleaning solution (D 009 401 04).
‹› Warm the adhesive areas to approximately 104°F (40°C) using a hot air gun.
-
Press the emblem firmly onto the body according to the dimensions.
‹› Dimension - a - = 26 mm
‹› Dimension - b - = 86 mm
‹› Dimension - c - = 458 mm
‹› Dimension - d - = 4 mm
S5 rear lid emblem
