Control Arm Bushing: Service and Repair
Bushings In Front and Rear Upper Links, Replacing

Bushings in front and rear upper links, replacing

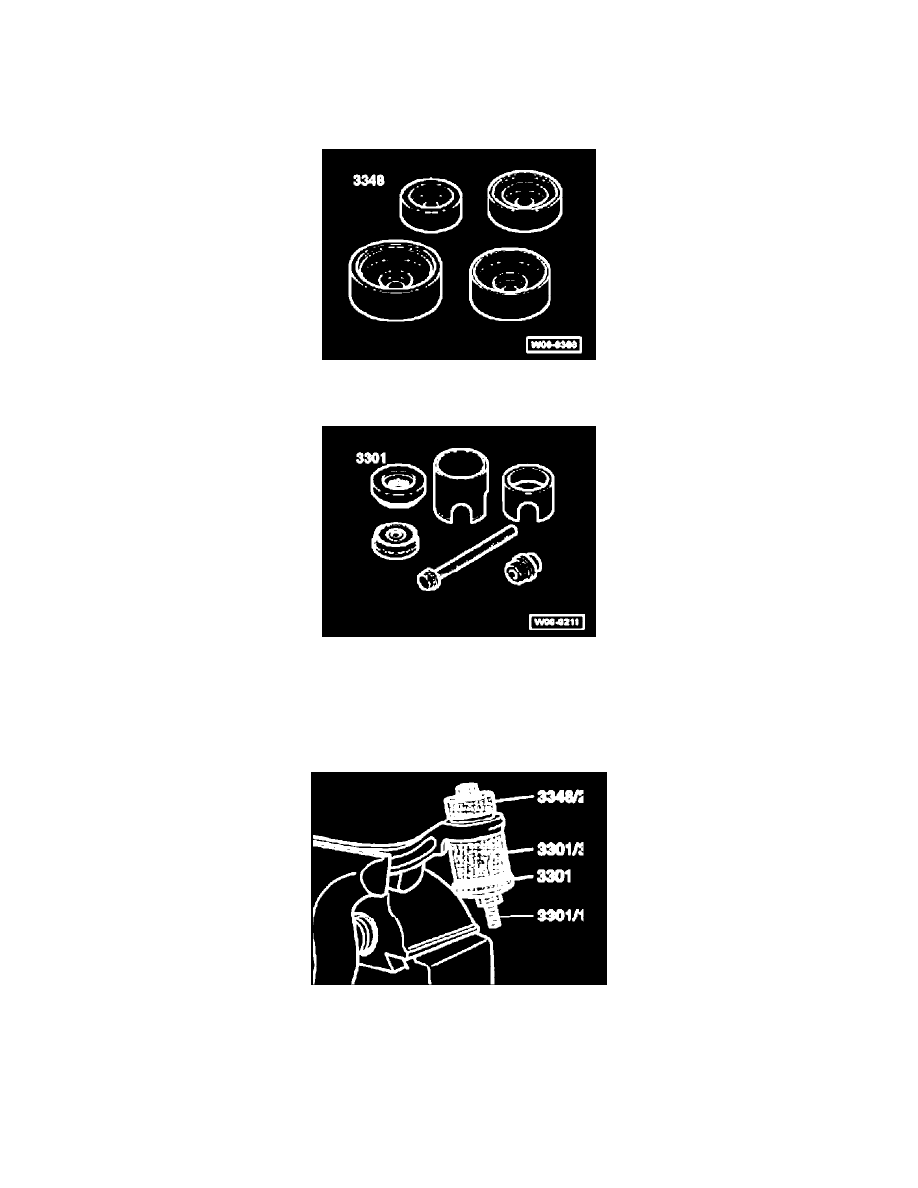

Special tools and equipment

^

3348/ 2 installation tool

^

3348/ 3 installation tool

^

3301 installation tool

^

3301/ 3 installation tool

^

3301/ 1 installation tool

Note:
^

Men clamping aluminum finks, use protective pads.

Pulling out bushing
