Luggage Rack: Service and Repair

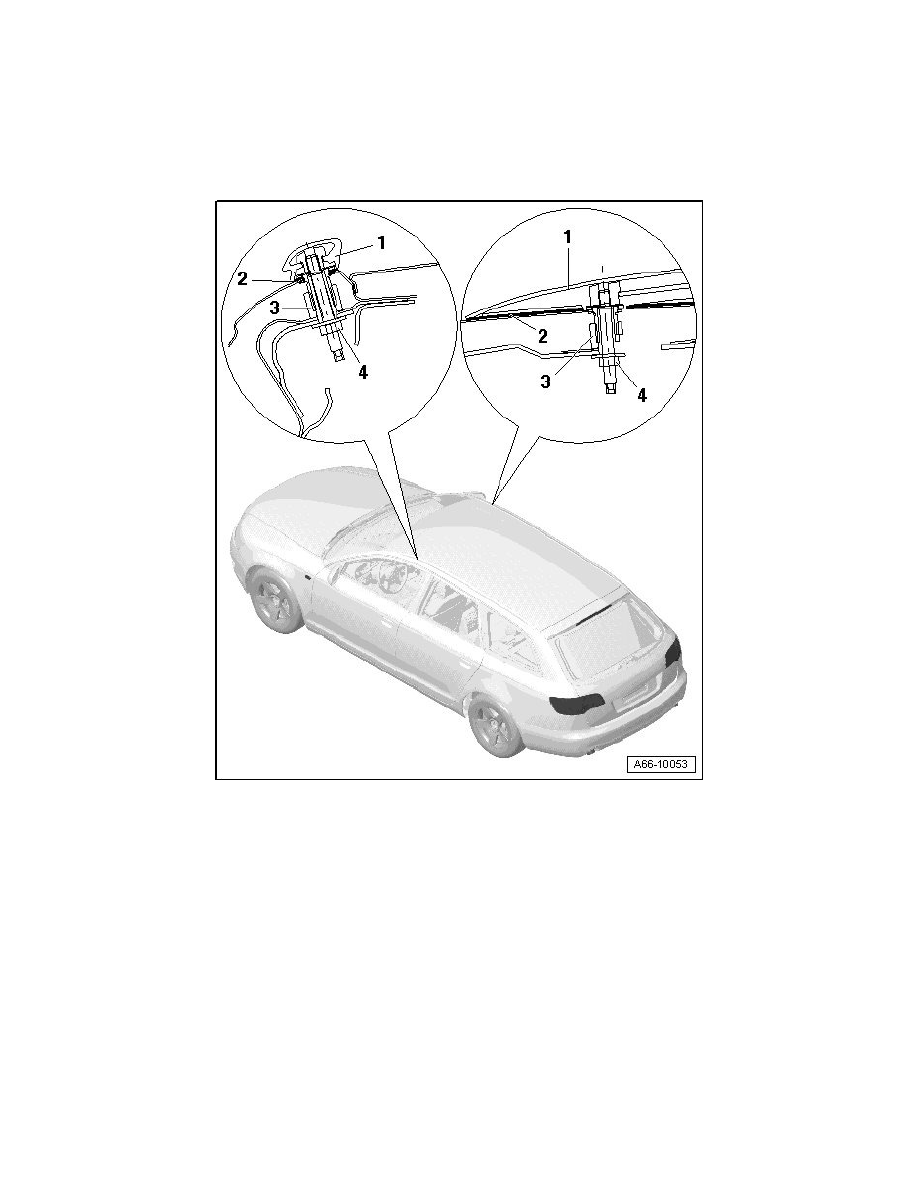

Roof Rail

Roof Rail

=> [ Roof Rail ]

Roof Rail

1

Roof Rail

‹› Remove A-pillar; B-pillar; C-pillar and D-pillar trim.=> Body Interior 70 Removal and Installation

2

Seal

‹› Belongs to roof rail delivery casing.

3

Adjusting element

‹› Slid into roof rail in installation position before installing.

‹› Must contact roof with slight pre-tension.

4

Hex nut

‹› Observe tightening sequence from inside towards outside.

‹› Tighten to 10 Nm.
