A6 Quattro Sedan V6-3.2L (BKH) (2005)
/Page-3686001.png)
Seals and Gaskets: Service and Repair
Sealing Rings For Flange Shafts, Replacing
Sealing rings for flange shafts, replacing
^
The oil seals can be only be replaced with the final drive removed.

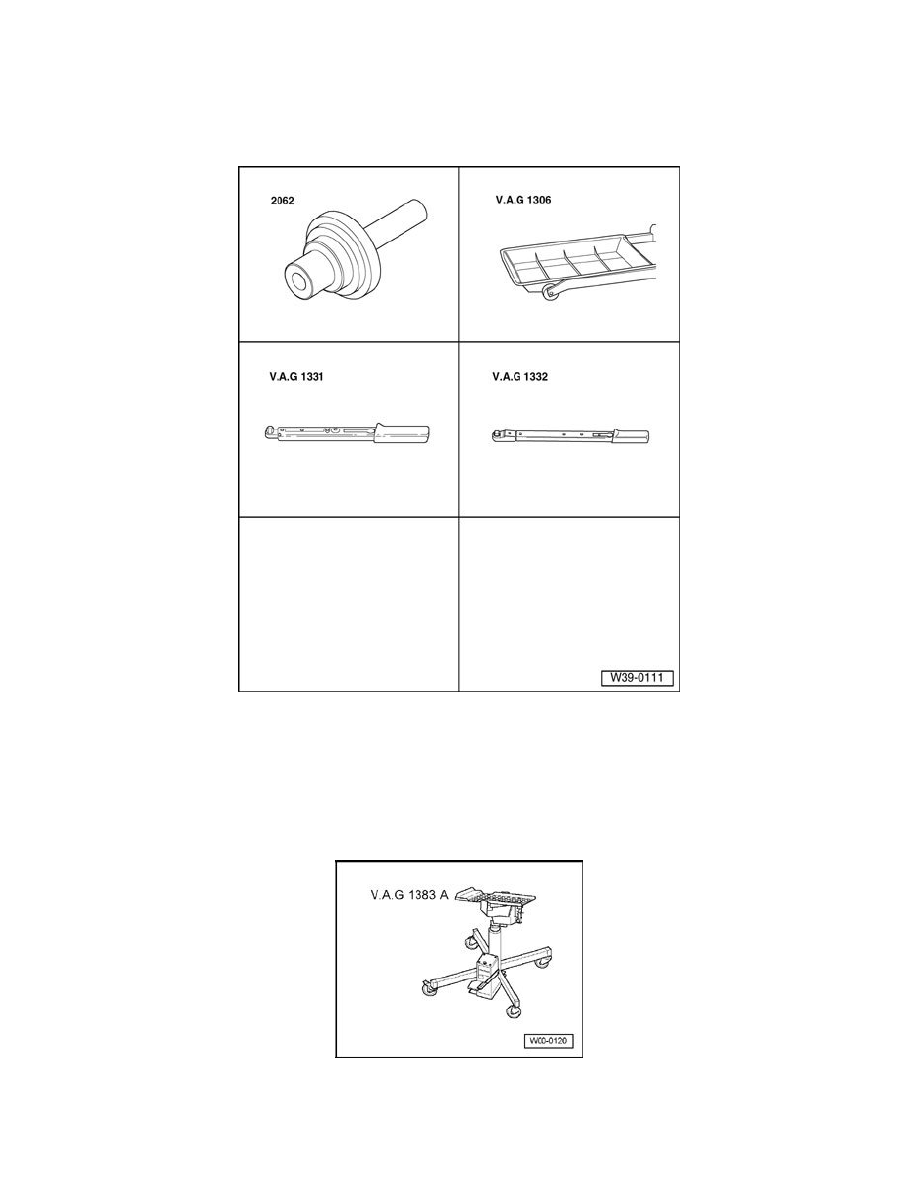

Special tools, testers and auxiliary items required
^
Driver 2062
^
Drip tray V.A.G. 1306
^
Torque wrench V.A.G. 1331
^
Torque wrench V.A.G. 1332
^
Sealing grease G052128A1
Special tools, testers and auxiliary items required
^
Engine-/transmission jack V.A.G. 1383A with universal transmission support V.A.G. 1359/2
Removing
All illustrations show the left side of the rear final drive. Removing and installing drive flange and oil seal on right side is identical.
