A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-6953001.png)
Rear Door Panel: Service and Repair

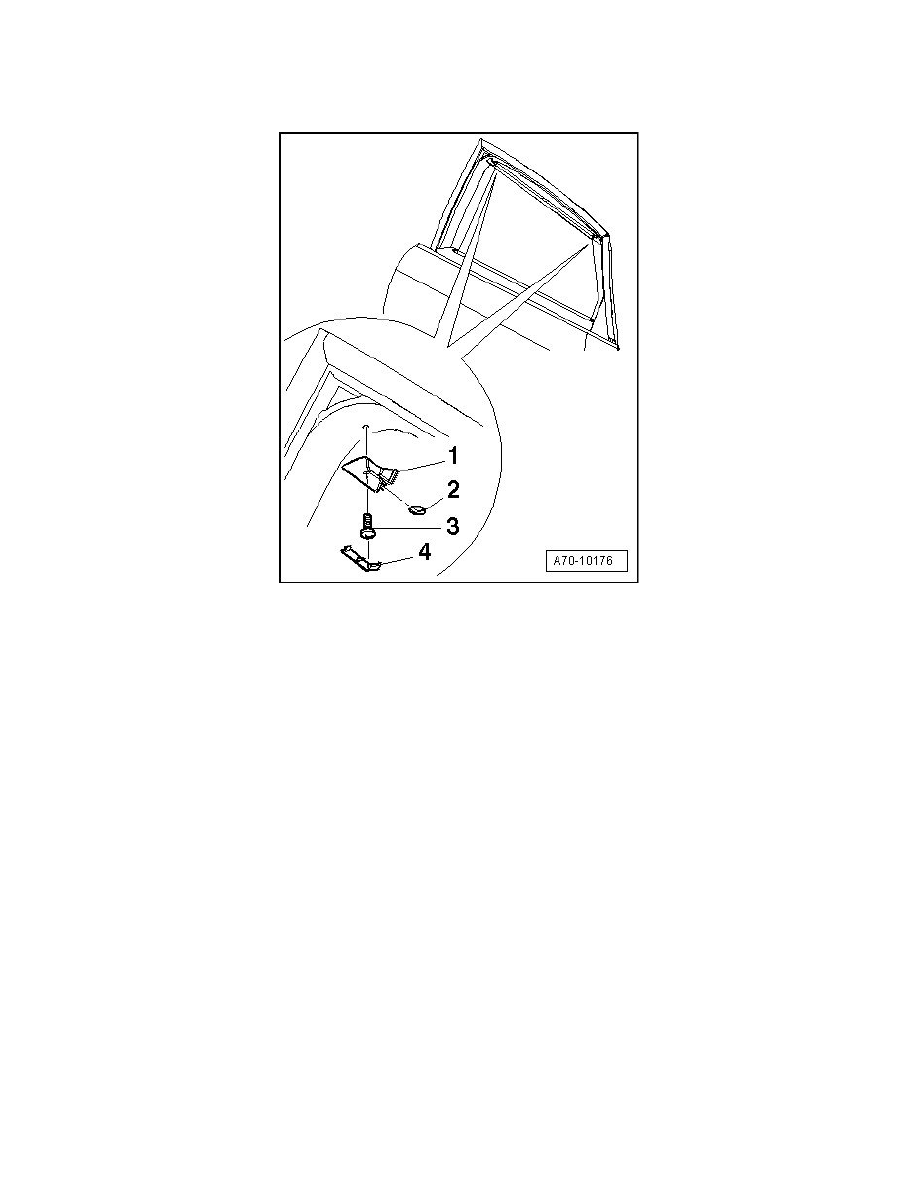

Sun Shade Retainer
Sun Shade Retainer
‹› Removing
-
Remove cover - 4 -.
-
Remove screw - 3 -.
-
Remove retainer - 1 -.
‹› Installing
To install, perform the steps used in removal in reverse order. When doing so, note the following:
Adjusting piece - 2 - serves as tolerance compensation and can be offset in retainer - 1 - if needed.
‹› Tightening specifications for bolt - 3 -: 1 Nm
