A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-7127003.png)
-

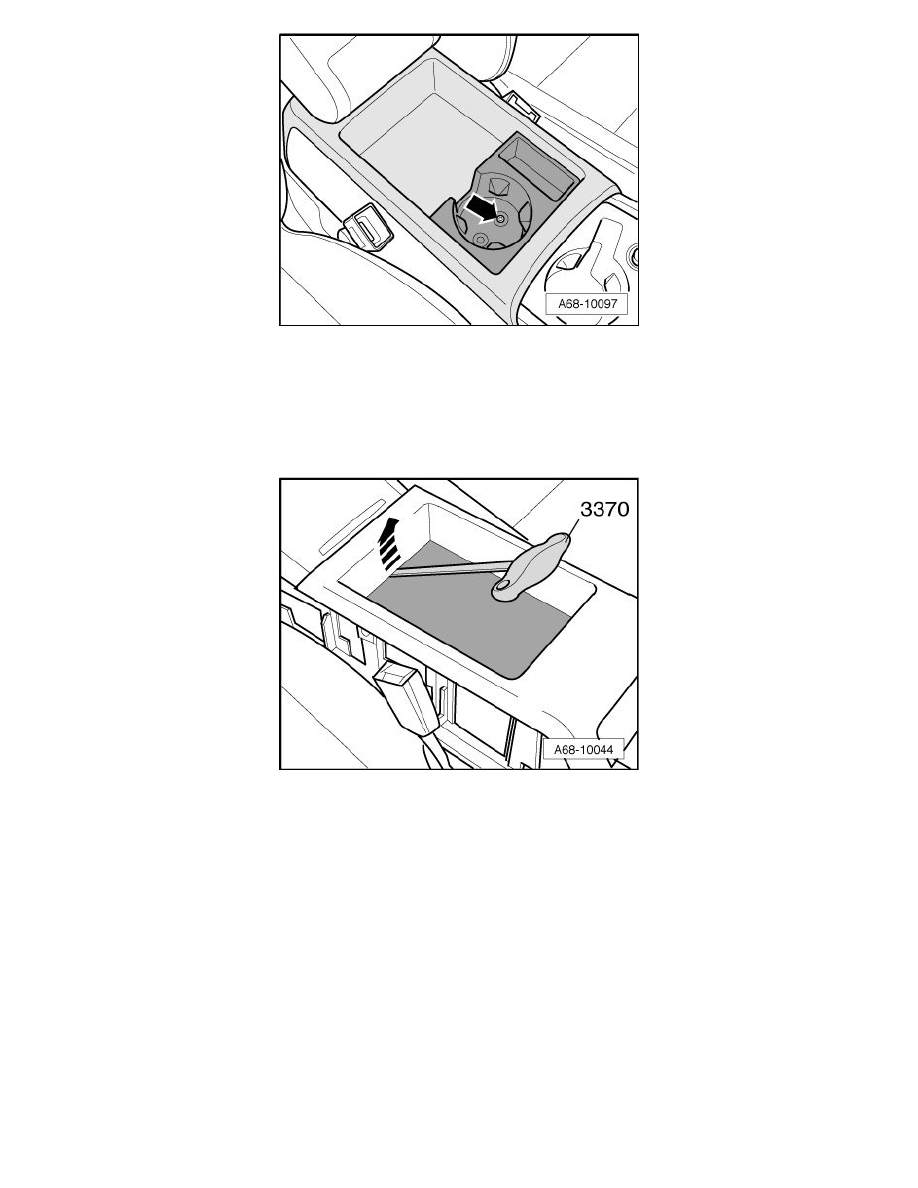

Remove inlay mat.
-
Remove screws - arrows -.
-
Remove rear cup holder from rear center console.
All:
-
Lift rear storage compartment inlay mat out of rear center console using Special Hook (3370) in - direction of arrow -.
-
Disconnect the connector - 2 -.
