A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-7159001.png)
Headliner: Service and Repair
Roof Trim Overview
Roof Trim
=> [ Headliner Component Overview ]

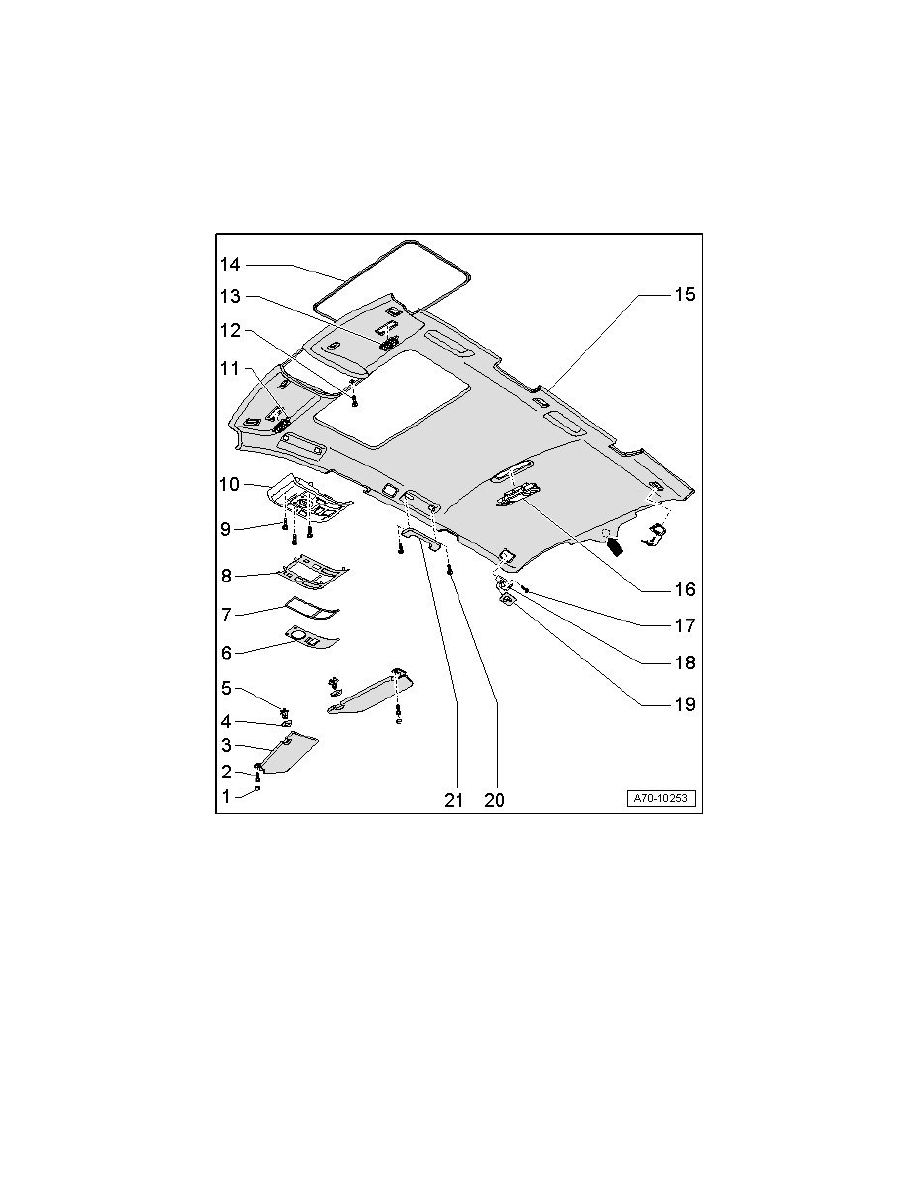

Headliner Component Overview
‹› The Audi Avant headliner is shown in the following.
1
Cap
2
Bolt
3
Sun visor
‹› Removing and Installing => [ Sun Visor ] See: Roof Trim
4
Cover
‹› For sun visor center bracket
‹› Removing and Installing => [ Sun Visor Center Mount ] See: Roof Trim
5
Sun visor center bearing
‹› Removing and Installing => [ Sun Visor Center Mount ] See: Roof Trim
