Utility Storage Compartment: Service and Repair
Passenger Side Storage Compartment Assembly Overview

Standard Front Seats

‹› From 07.2006, the usual wiring harness routing to connector station under front seat => [ Connectors, Disconnecting ] has been replaced with

modular wiring routing => [ Modular Wiring Routing, from 07.2006, Assembly Overview ].

‹› The modular wiring routing has not been implemented for all countries.

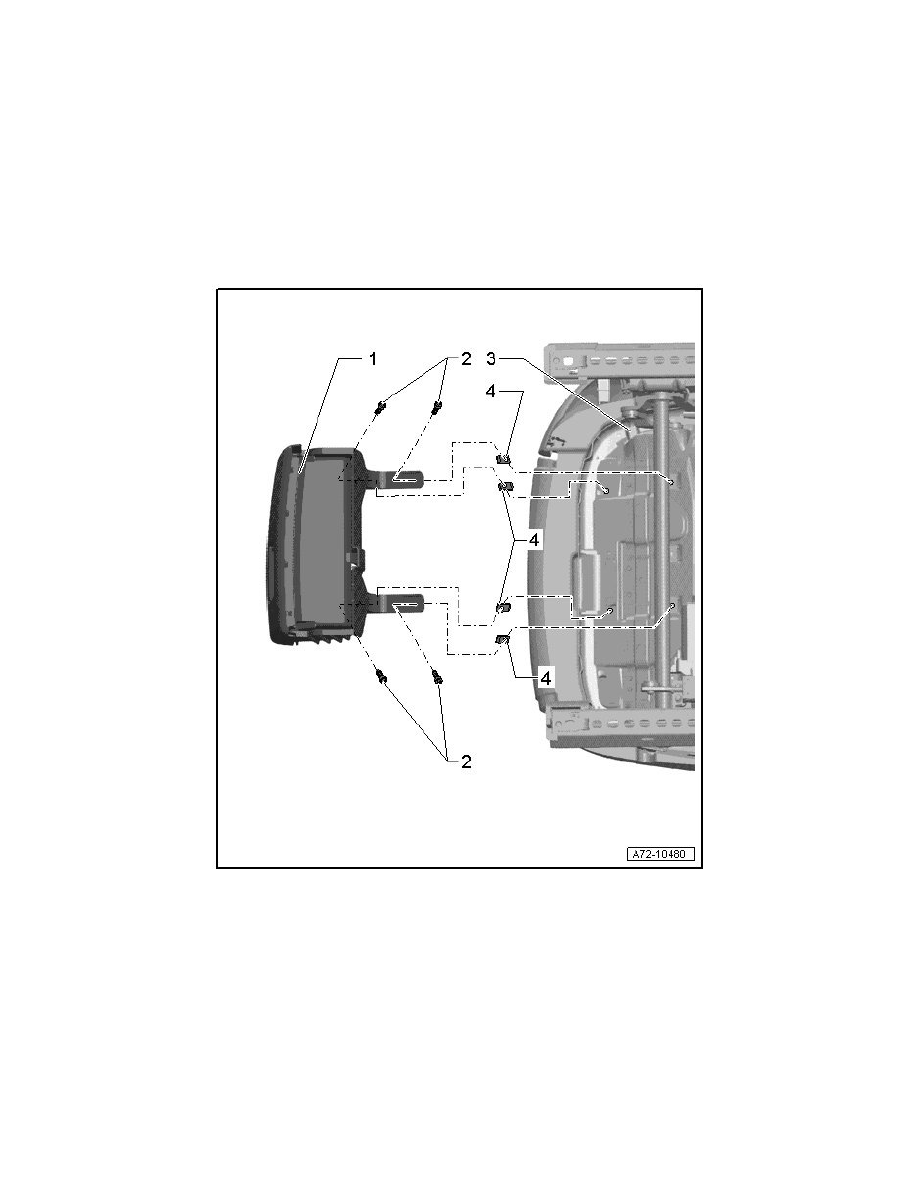

Passenger Side Storage Compartment Assembly Overview

Versions for specific countries: from vehicles 06/06

1

Storage compartment

‹› Removing and Installing => [ Storage Compartment ] See: Seats/Service and Repair/Removal and Replacement/Standard Front Seats

‹› Storage compartment individual parts, assembly overview => [ Storage Compartment Individual Components Assembly Overview ]

‹› Disassembling and assembling => [ Standard Front Seats Storage Compartment ] See: Seats/Service and Repair/Overhaul/Standard Front Seats

Storage Compartment

‹› Only installed on passenger side

2

Bolt

‹› 3.5 Nm
