Power Seat Motor: Service and Repair
Seat Height Adjustment Lever
Seat Height Adjustment Lever
Removing
-
Remove the outer side trim => [ Side Trim ].
-

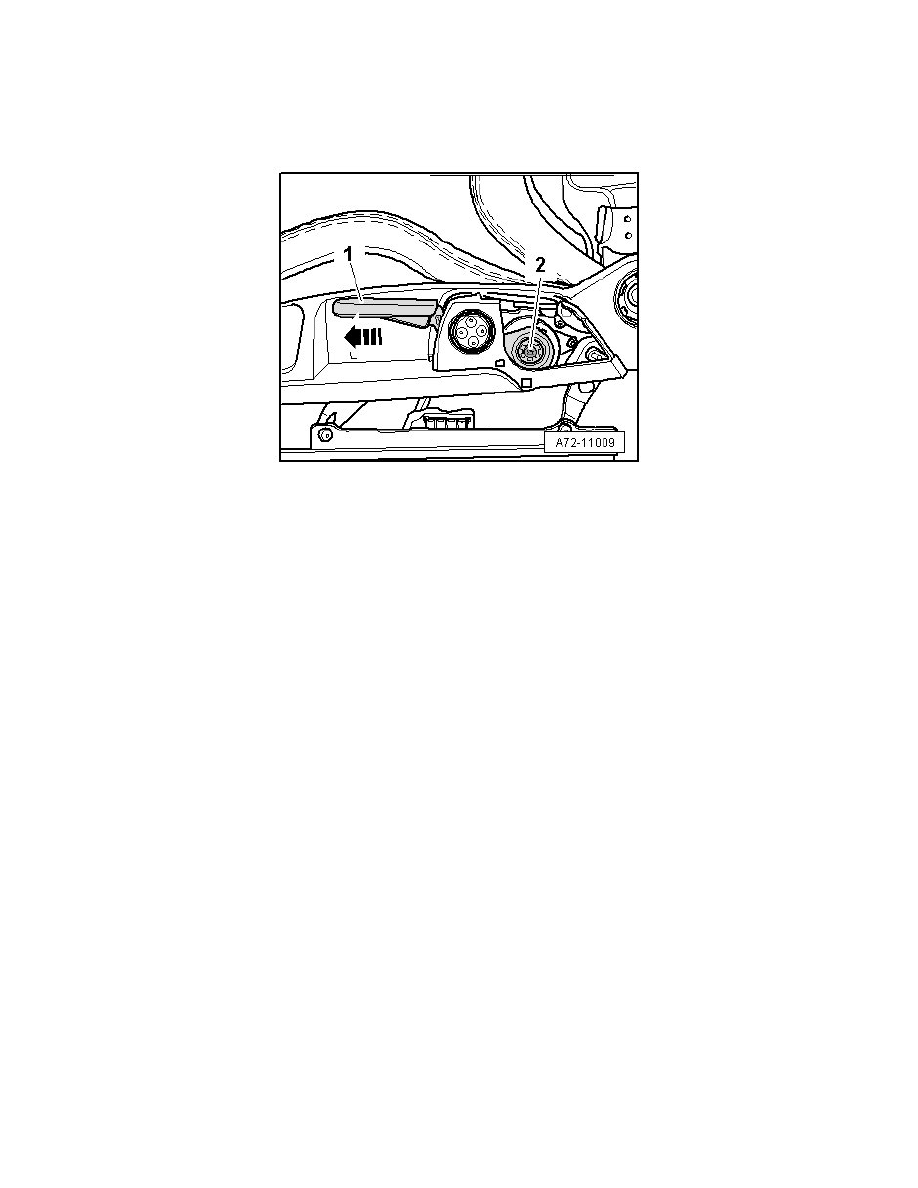

Remove the bolt - 2 -.
-
Remove the seat height adjustment handle - 1 - in the - direction of the arrow -.
Installing
‹› Tightening specifications => [ Seat Height Adjustment Unit Assembly Overview ] See: Service and Repair/Removal and Replacement/Bucket
Seats Overview.
Installation is reverse of removal, but note the following:
-
Insert the bolt with locking compound.
