A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 5
background image

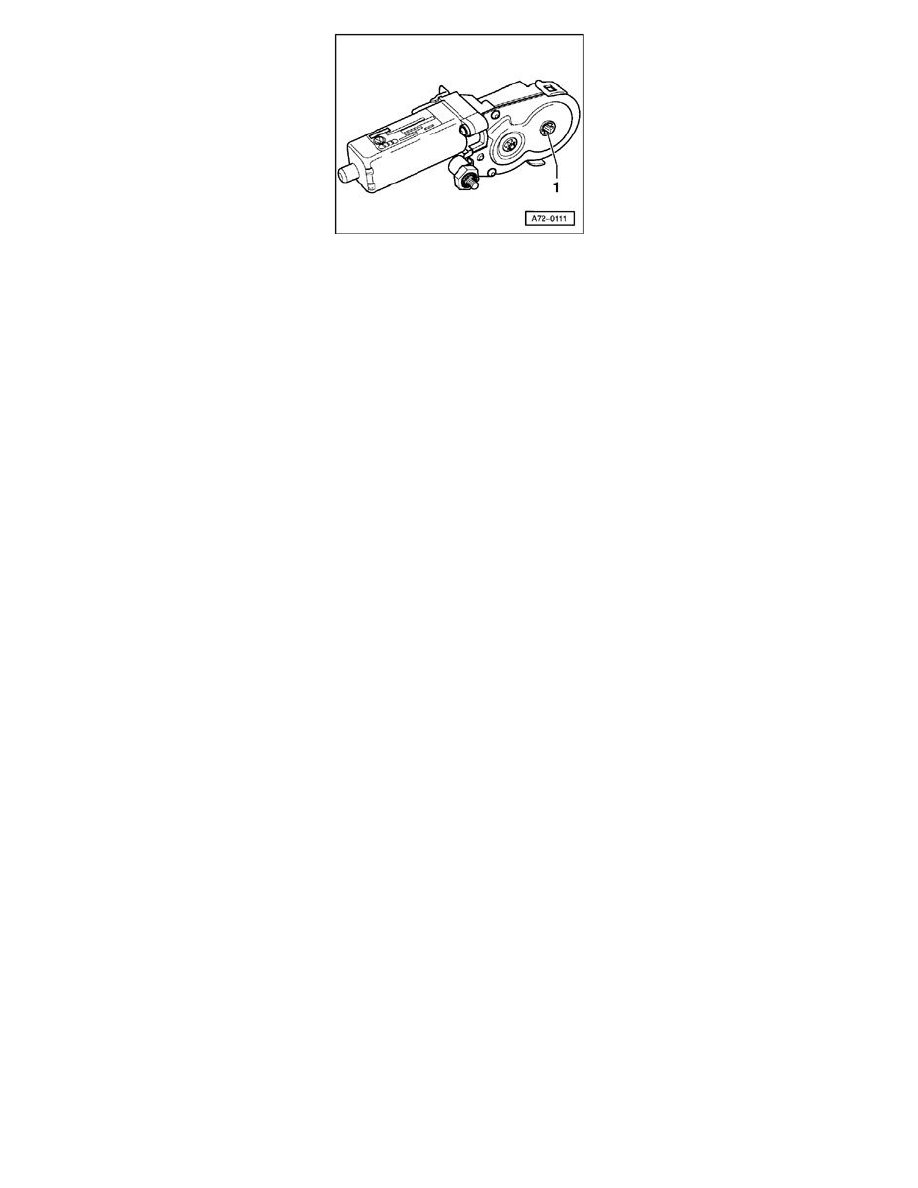

Preparing Backrest Adjustment Motor

-

Using a screwdriver, turn the locating element of splines - 1 - so it aligns with shaft of backrest frame.
