A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-7665001.png)

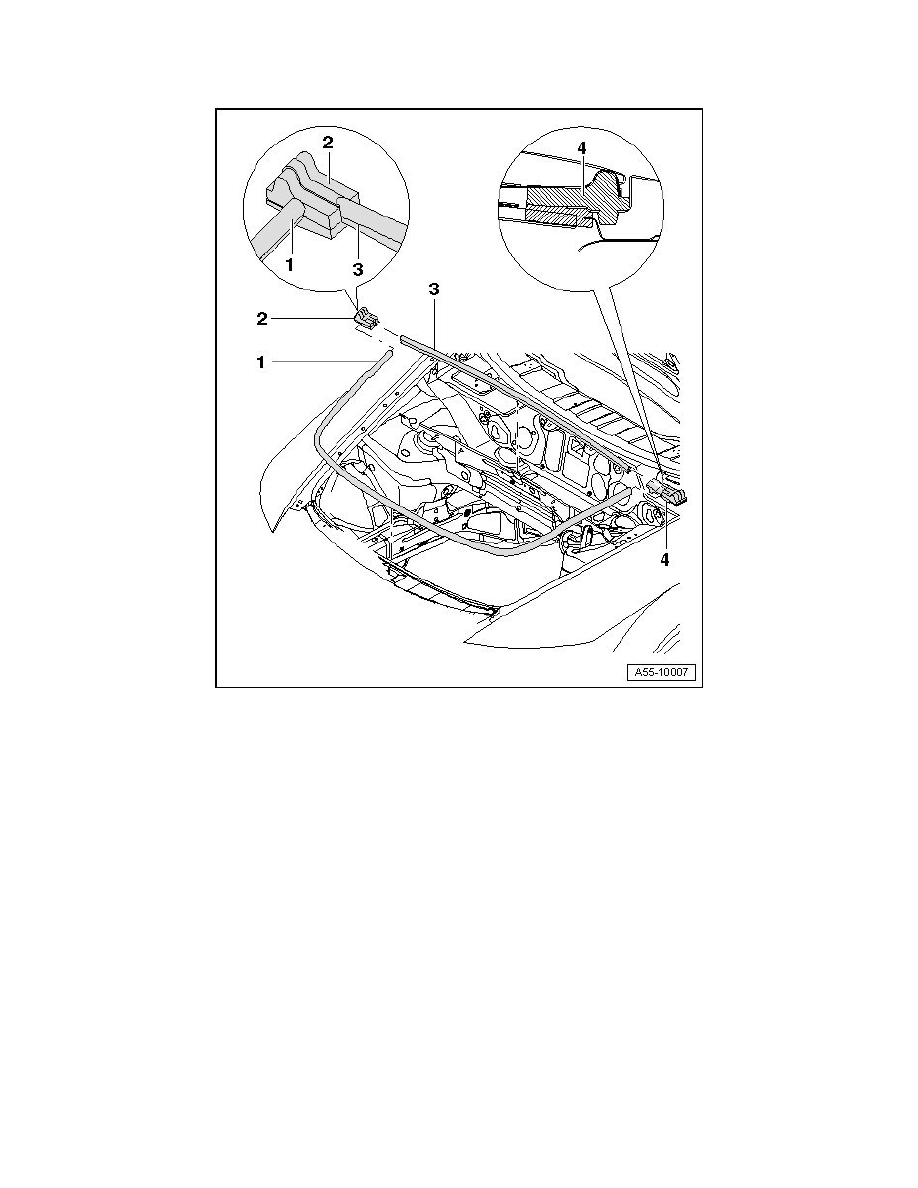

Hood Weatherstrip: Service and Repair
Hood Seal
1
Gasket for lock carrier
‹› Apply gasket at left and right on foam piece.
‹› When doing this, make sure it is applied without gaps.
‹› Compress excess length of gasket along lock carrier.
2
Left sealing profile
‹› Self-adhering, adhesion surfaces must be free of dust and grease.
3
Gasket for plenum chamber
‹› Apply gasket at left and right on foam piece.
‹› When doing this, make sure it is applied without gaps.
‹› Compress excess length of gasket along front panel of plenum chamber.
4
Right sealing profile
