Hydraulic Control Assembly - Antilock Brakes: Locations

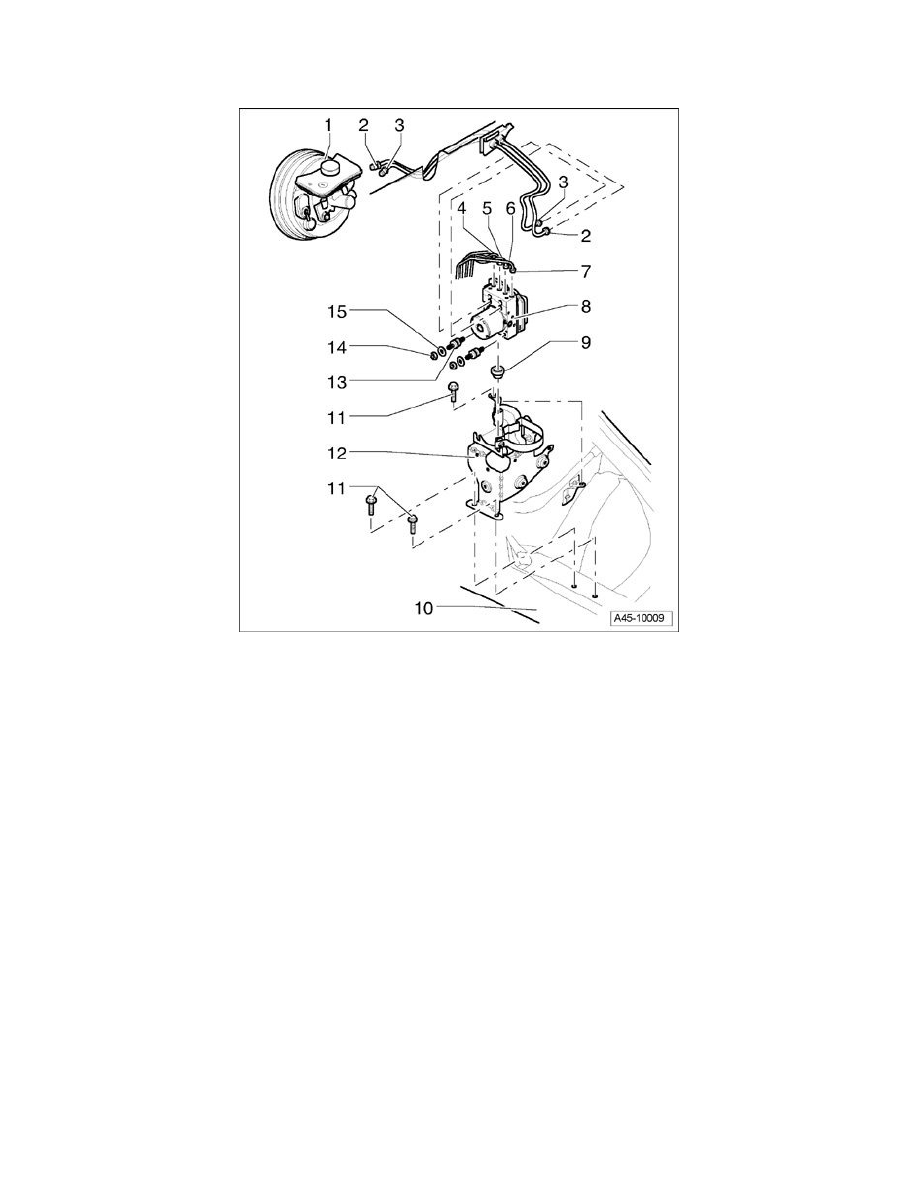

Hydraulic unit and brake lines

1. Brake master cylinder and brake booster

2. Brake line

^

Brake master cylinder/primary piston circuit to hydraulic control unit

3. Brake line

^

Brake master cylinder/secondary piston circuit to hydraulic unit

4. Brake line

^

Hydraulic unit to right front brake caliper

5. Brake line

^

Hydraulic control unit to left rear brake caliper

6. Brake line

^

Hydraulic control unit to right rear brake caliper

7. Brake line

^

Hydraulic unit to left front brake caliper

8. ABS Hydraulic Unit N55 with ABS Control Module J104

^

With integrated brake pressure sensor

9. Buffer, Qty. 2

10. Body long member

11. Combi-nut, torque specification 10 Nm
