A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2291001.png)
Radiator: Locations

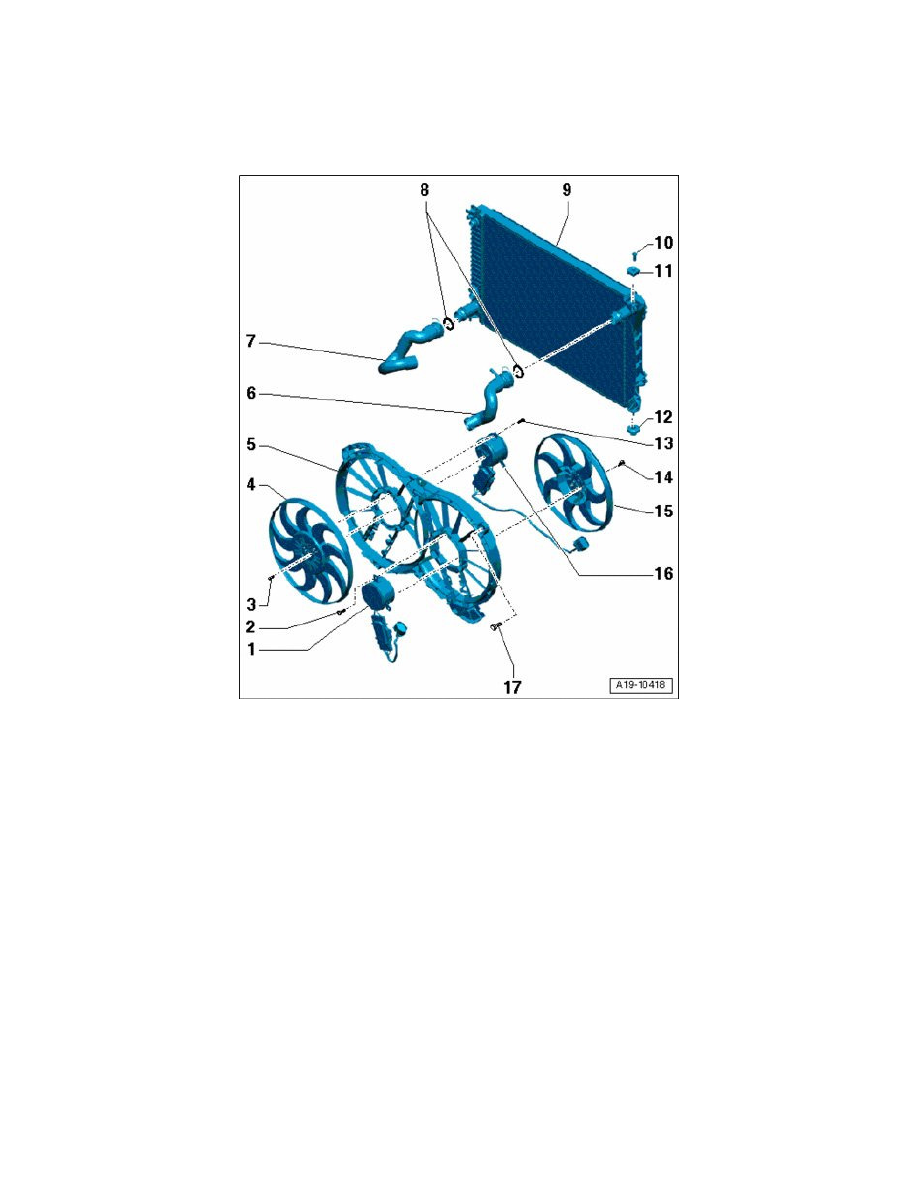

Radiator and coolant fan, assembly overview
CAUTION:
Risk of injury from coolant fan starting by itself.
^
Before working in fan shroud area, disconnect electrical connectors.
1. Coolant Fan V7
^
With Coolant Fan Control (FC) Control Module J293
2. Bolt
^
5 Nm
3. Bolt
^
3.5 Nm
4. Fan wheel
^
Not delivered separately
5. Fan rib
6. Coolant hose
^
To pull off, disengage retaining clip
7. Coolant hose
^
To pull off, disengage retaining clip
8. O-rings
^
Replace
9. Radiator
^
After replacing, replace entire amount of coolant
