Audi Workshop Service and Repair Manuals > A6 Quattro Sedan V8-4.2L (BVJ) (2007) > Engine, Cooling and Exhaust | Engine | Camshaft, Lifters and Push Rods | Camshaft, Engine | Component Information | Testing and Inspection

Page 5

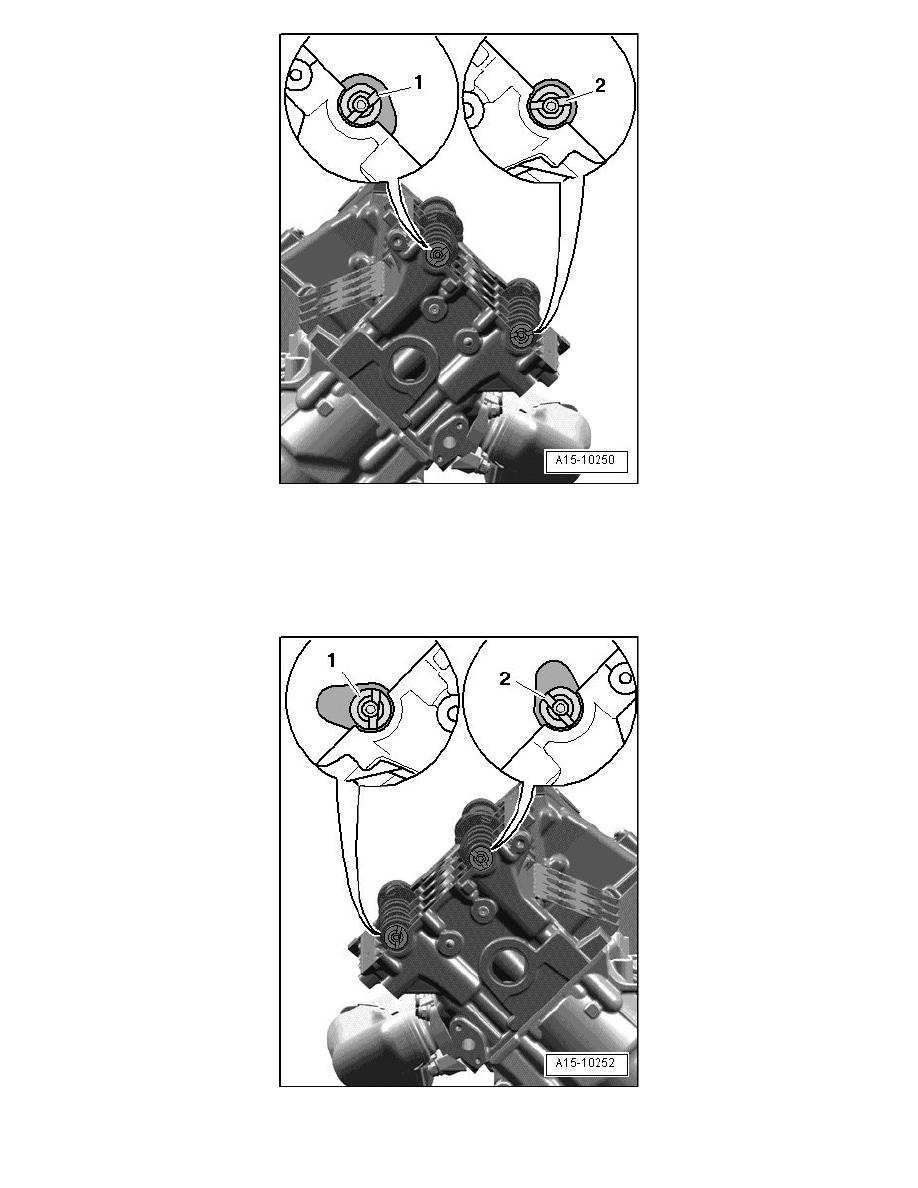

1. Intake camshaft

2. Exhaust camshaft

‹› Groove on end of shaft must lie as shown in illustration.

Right cylinder head:

1. Exhaust camshaft
