A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 8
background image

-

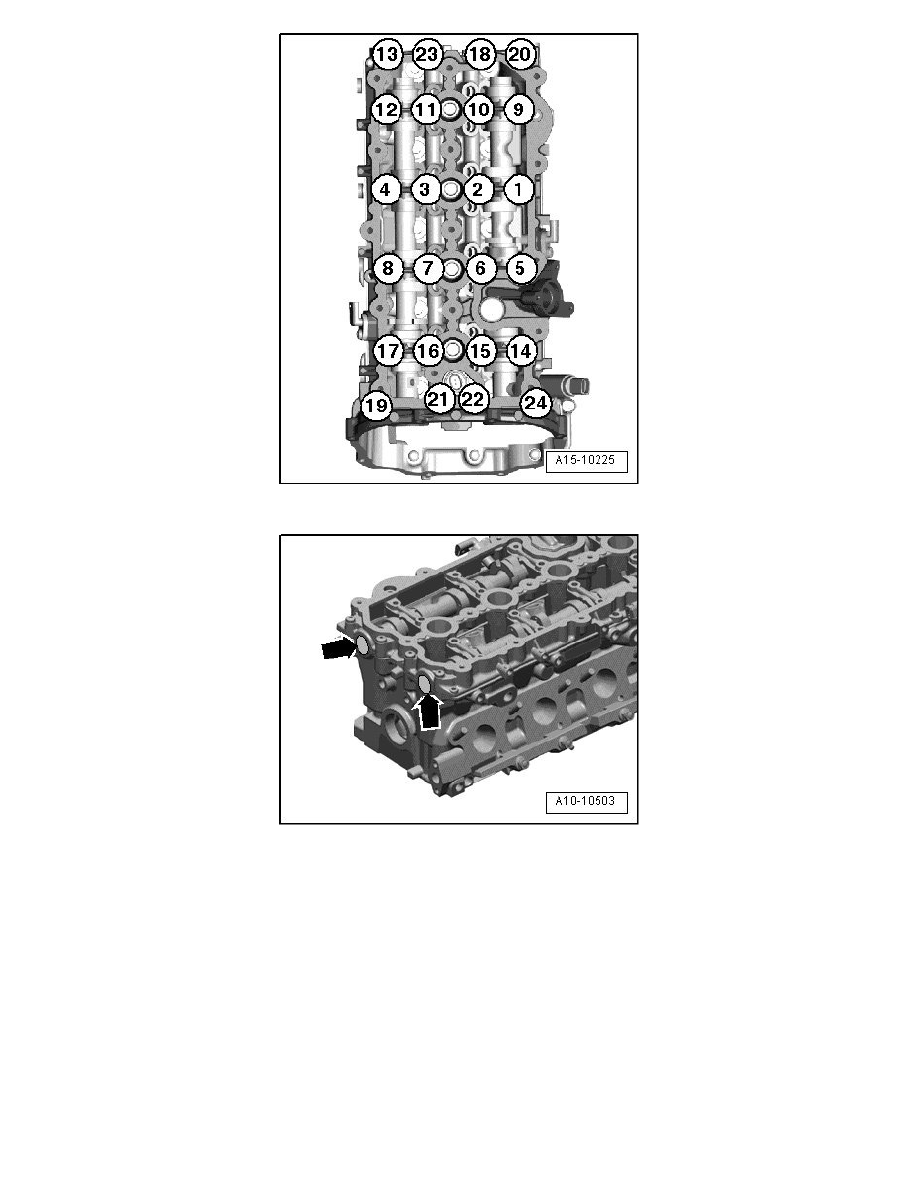

Drive sealing plugs - arrows - in flush.

-

Remove locating pins (T40116) with impact puller (T10133/3).
