A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 2
background image

-

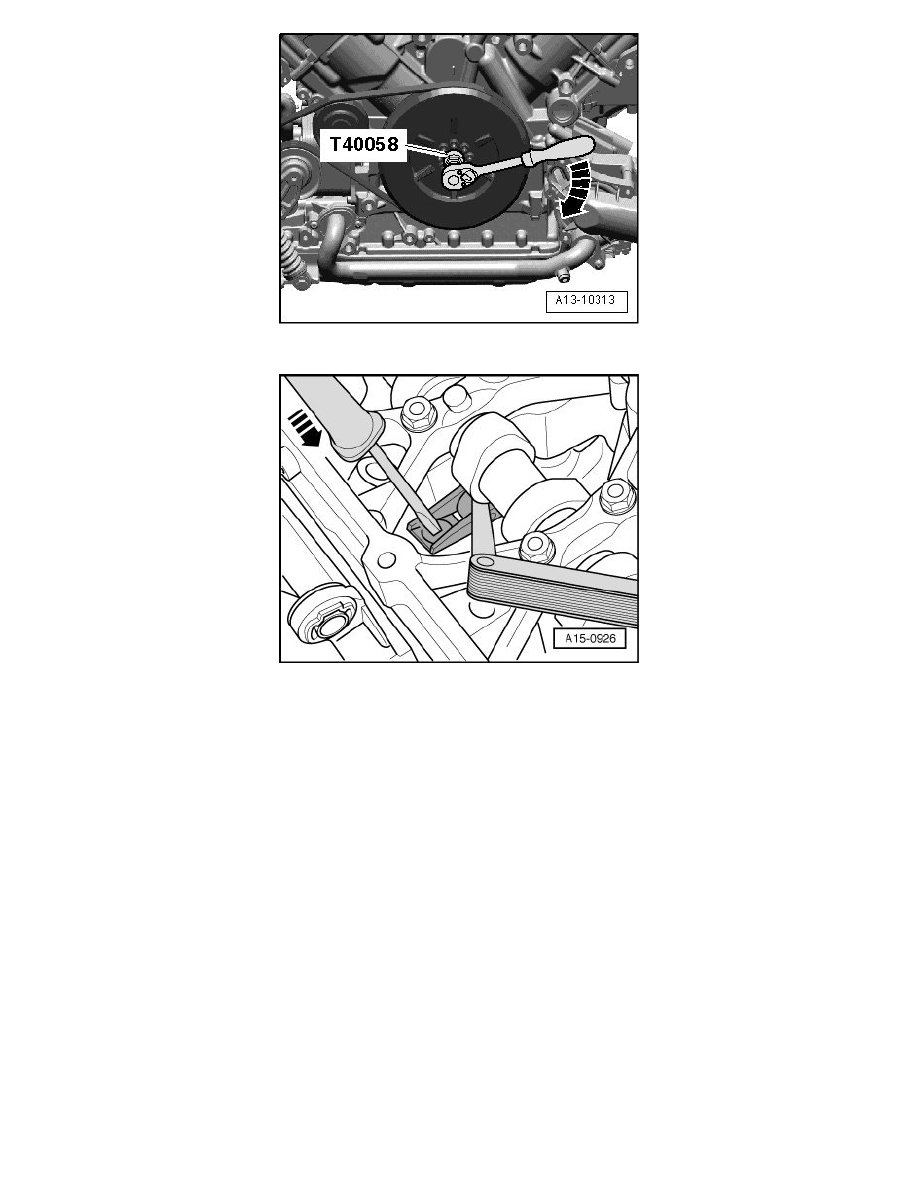

To determine play between cam lobes and roller rocker lever, press lever down - arrow -.

-

If a 0.20 mm feeler gauge can slide between cam lobes and roller rocker lever, replace support element => [ Camshafts ] See: Camshaft/Service
and Repair.

Final procedures

-

Install cylinder head cover: Left => [ Left Cylinder Head Cover ] See: Cylinder Head Assembly/Valve Cover/Service and Repair/Left Cylinder
Head Cover, right => [ Right Cylinder Head Cover ] See: Cylinder Head Assembly/Valve Cover/Service and Repair/Right Cylinder Head Cover.
