A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2094001.png)
Intake Manifold: Service and Repair
Plastic Intake Manifold In MY 2009
Intake Manifold
Special tools, testers and auxiliary items required
‹› Torque Wrench (V.A.G 1331)
‹› 17 mm Socket (V.A.G 1331/6)
‹› SW 14 Socket, Open Ring (V.A.G 1331/8)
‹› Assembly Tool (T10118)
‹› Hose Clamps Up to 25 mm Diameter (3094)
Removing
CAUTION!
‹› Fuel system is under high pressure! Before opening high pressure components of the fuel injection system, pressure must be relieved
to residual pressure. Refer to => [ Before Opening High Pressure Fuel Injection System ] See: Cylinder Head Assembly/Fuel Pressure
Release/Service and Repair.
‹› Then wrap a clean rag around the connection and relieve residual pressure by carefully loosening the connection.
‹› All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.
-
With ignition switched off, disconnect Battery Ground (GND) cable.
-
Remove engine cover.
-
Pull cover - 1 - forward and remove it upward.
-

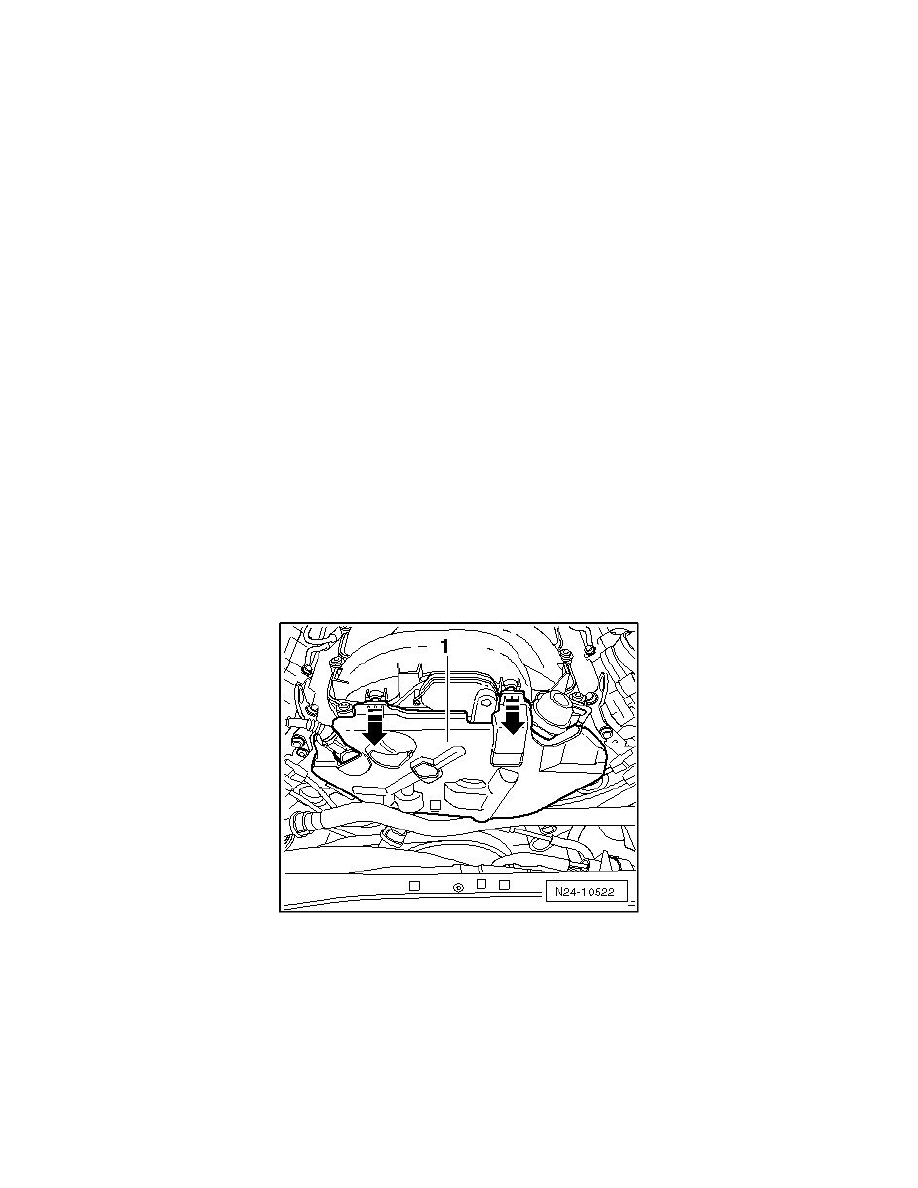

Disconnect the connector - 1 - and disconnect the vacuum lines - arrows -.
