A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2119003.png)

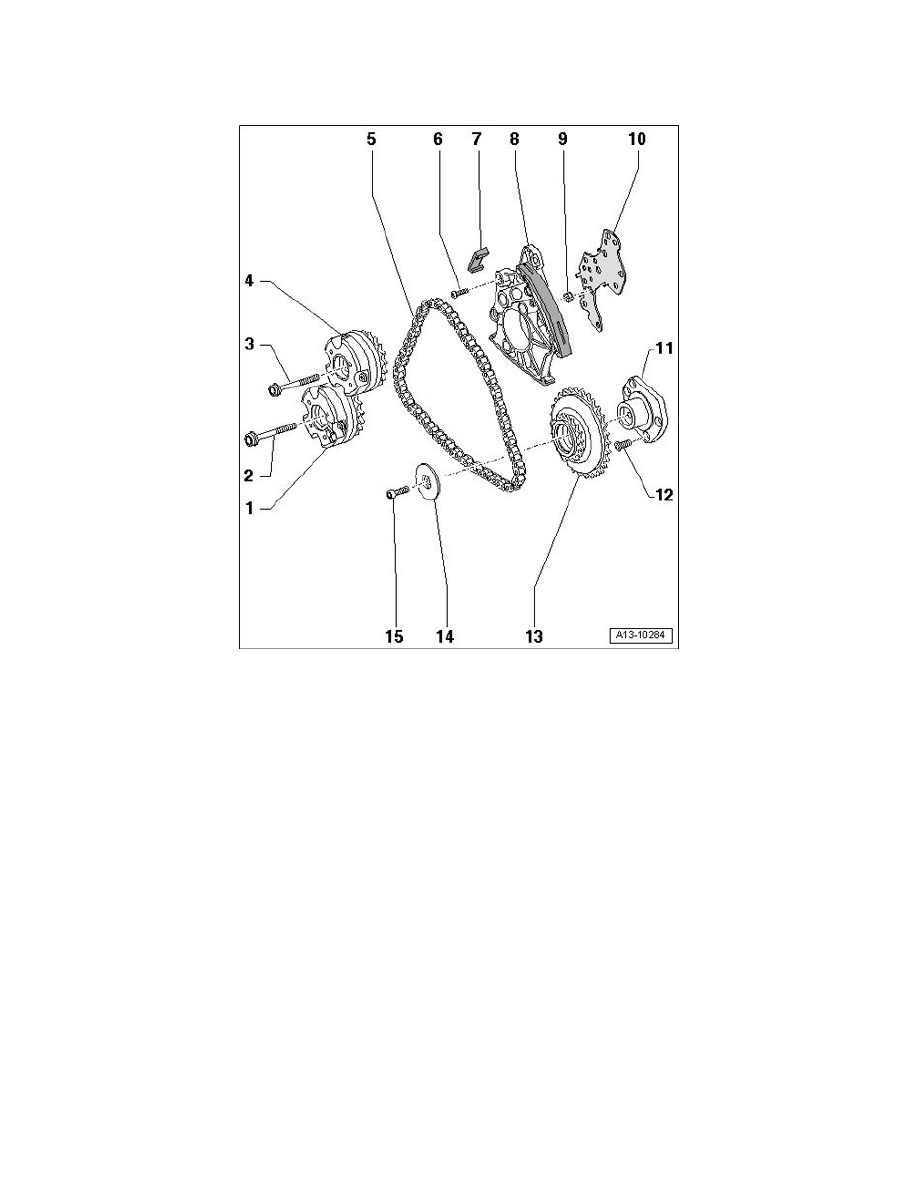

4. Bolt
^
Replace
^
80 Nm plus an additional 90° (1/4 turn).
5. Bolt
^
Replace
^
80 Nm plus an additional 90° (1/4 turn).
6. Camshaft adjuster for intake camshaft
^
Identification "Intake"
7. Right camshaft timing chain
CAUTION:
Risk of destroying due to reversed running direction on a used timing chain.
^
Mark timing chain running direction with arrows using paint for reinstallation.
8. Chain tensioner for right camshaft timing chain
9. Guide piece
10. Oil strainer
^
Set into chain tensioner
^
Installed location: Observe locating tabs on circumference
11. Gasket
^
Replace
^
Clipped onto chain tensioner
12. Bolt
^
Replace
^
5 Nm plus an additional 90° (1/4 turn).
13. Thrust washer for drive sprocket
14. Drive sprocket for right camshaft timing chain

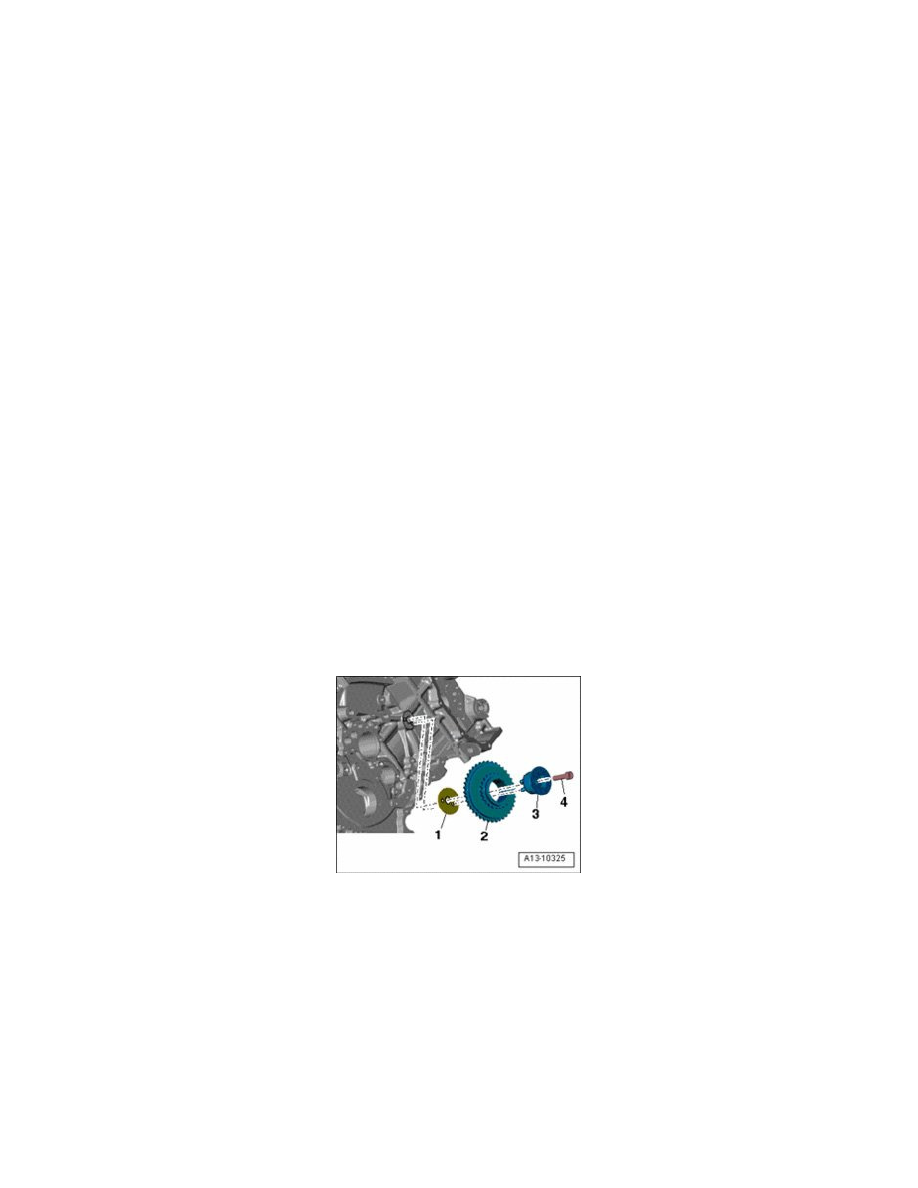

Right camshaft timing chain drive sprocket mounting bracket location
^
Alignment bushings in right camshaft timing chain drive sprocket mounting pins - 3 - must engage in holes in thrust washer - 1 - and cylinder
block.
2. Drive sprocket for right camshaft timing chain
4. Bolt
