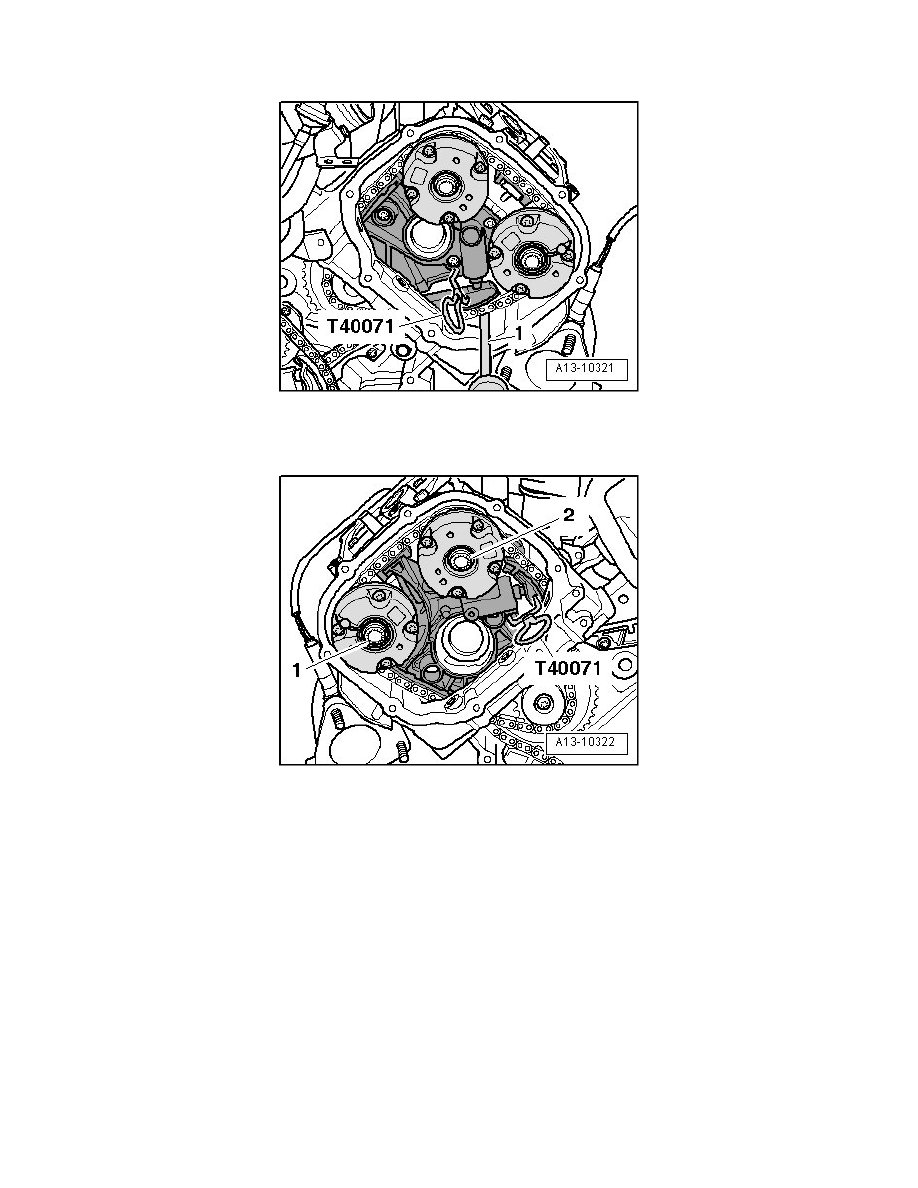

Press right camshaft timing chain tensioner glide track inward with a screwdriver - 1 - as far as stop and secure chain tensioner with Locking Pin
(T40071).

‹› The toothed belt tensioner is lubricated with oil and should only be compressed slowly by applying constant pressure.

For re-installation, identify installation location of camshaft adjuster with paint.

Remove bolts - 1 and 2 - on left cylinder head and remove both camshaft adjusters.

For re-installation, identify installation location of camshaft adjuster with paint.
