A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2120010.png)

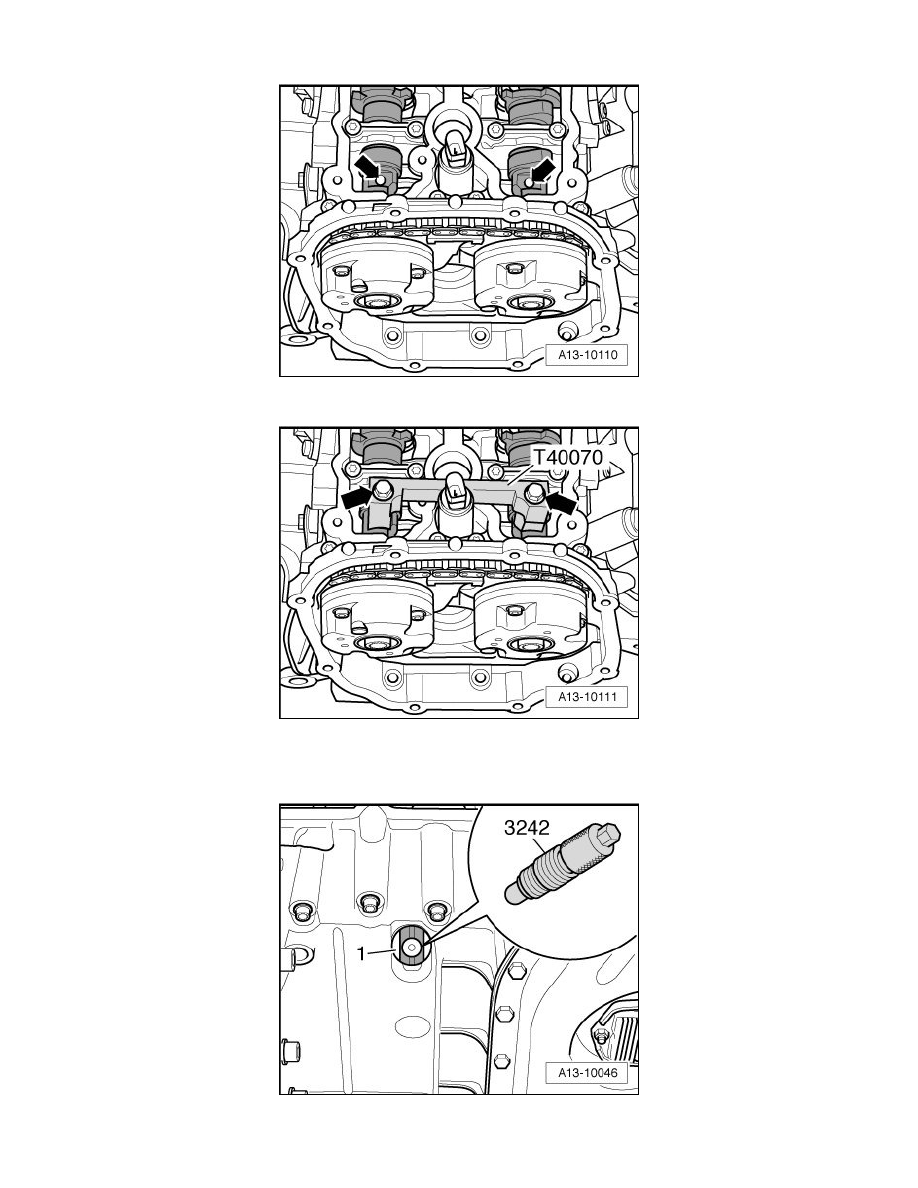

‹› The threaded holes - arrows - in the camshafts must face upward.
-
Mount camshaft locating tool (T40070) to both cylinder heads and tighten bolts - arrows - to 25 Nm.
‹› The Camshaft Locating Tool (T40070) is correctly positioned when holes for cylinder head bolts remain free.
-
Install Crankshaft Holder (3242) in bore and tighten to 20 Nm.
‹› The crankshaft holder (3242) must engage in the locating hole of crankshaft - 1 -, otherwise repeat adjustment.
