A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2130005.png)
-

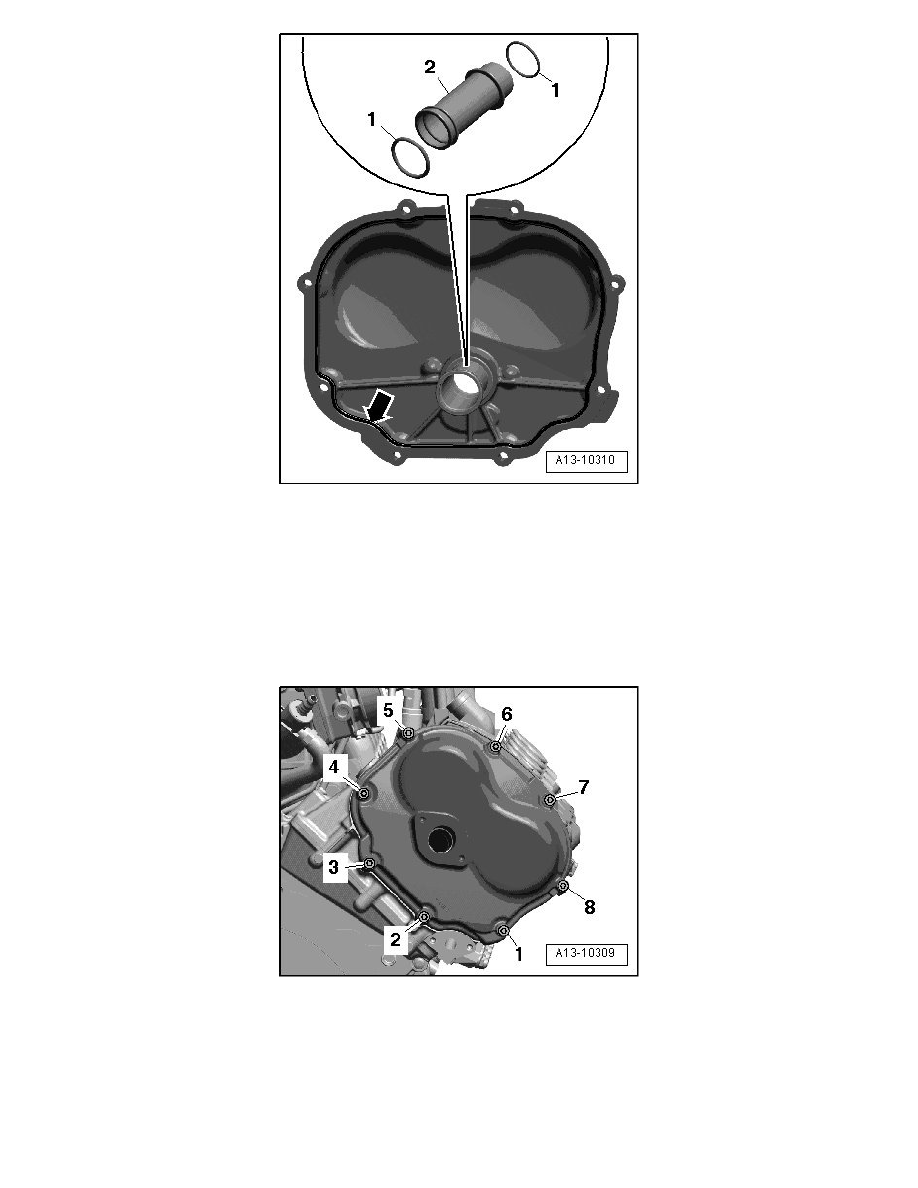

Replace O-rings - 1 - at coolant intermediate pipe - 2 -.
-
Insert coolant intermediate pipe in right timing chain cover.
-
Apply sealant bead - arrows - on clean sealing surfaces of right timing chain cover, as shown in illustration.
‹› Thickness of sealant bead: 2.5 mm.
-
Position right timing chain cover and tighten bolts => [ Right timing chain cover, tightening sequence ] See: Timing Chain Covers Assembly
Overview
The rest of installation is in reverse order of removal, note the following:
-
Install rear coolant pipe => [ Rear Coolant Line ] See: Cooling System/Coolant Line/Hose/Service and Repair/Rear Coolant Line.
-
Install secondary air injection combination valve: Left => [ Left Secondary Air Injection Combination Valve ] See: Powertrain
Management/Emission Control Systems/Air Injection/Air Injection Control Valve/Service and Repair/Left Secondary Air Injection Combination
Valve, right => [ Right Secondary Air Injection Combination Valve ] See: Powertrain Management/Emission Control Systems/Air Injection/Air
Injection Control Valve/Service and Repair/Right Secondary Air Injection Combination Valve.
