A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2131004.png)
-
Clean sealing surfaces so they are completely free of any oil or grease.
-

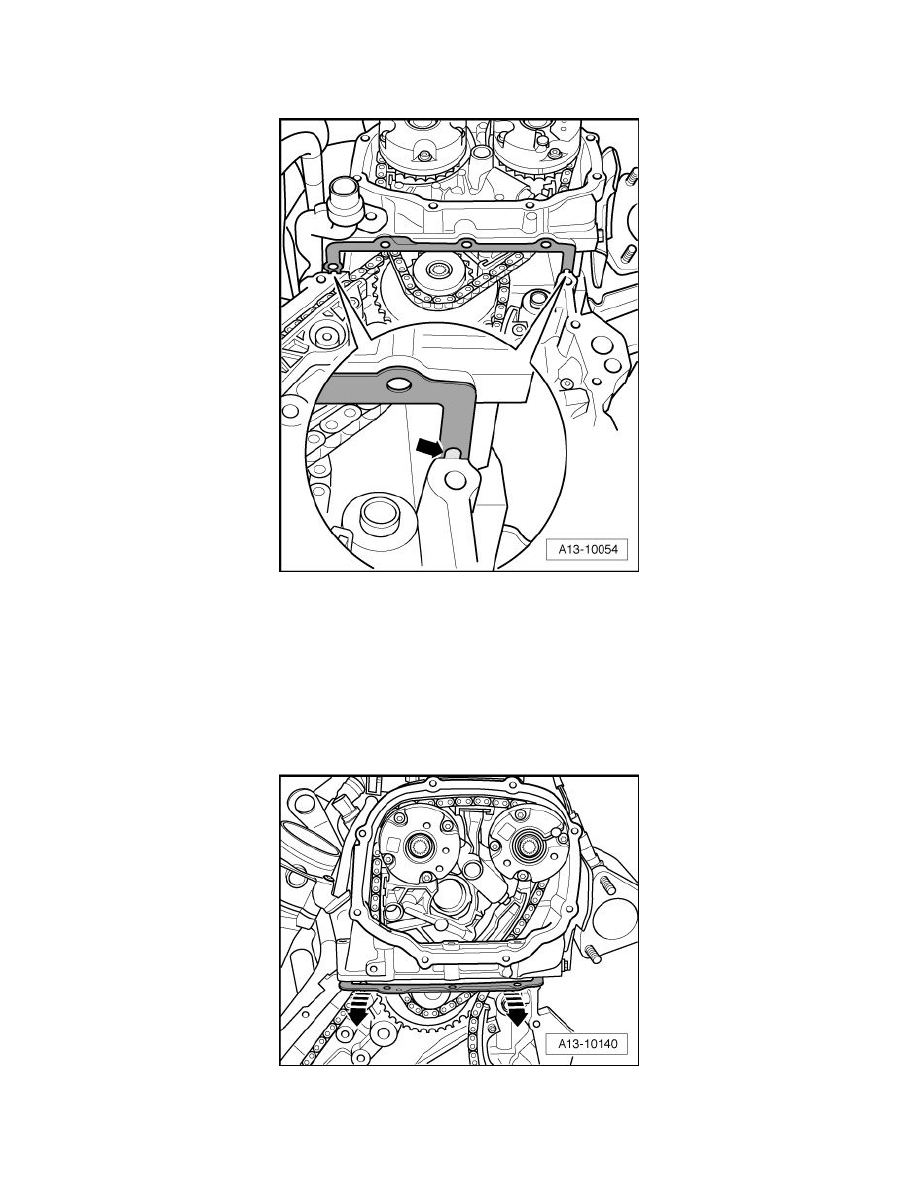

Clean old sealant from holes - arrow - in cylinder head gaskets.
‹› With the cylinder head installed only half of the holes in the cylinder head gasket are visible.
CAUTION!
Risk of damaging cylinder head seal.
‹› Only bend ends of cylinder head seals slightly, do not kink.
‹› A kinked cylinder head gasket must be replaced.
-
Bend the ends of cylinder head gaskets very slightly downward - arrows - until upper sealing surface of gasket and cylinder head can be cleaned.
-
Clean both cylinder head gaskets, top and bottom, so they are completely free of any oil or grease.
-
Cut off nozzle on tube of sealant at front mark (dia. of nozzle approx. 2 mm).
