Timing Cover: Locations

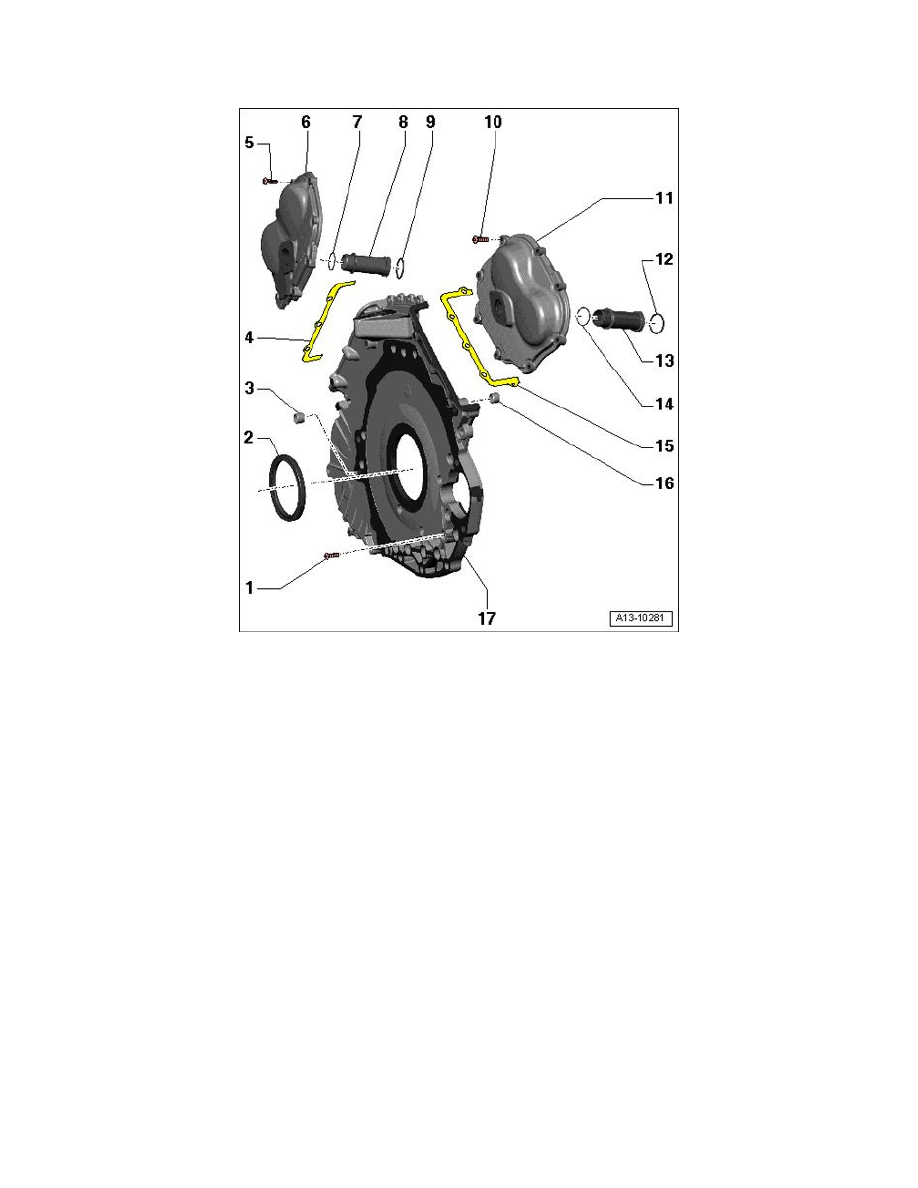

Timing chain covers, assembly overview
1. Bolt
^
Tightening order
2. Transmission-side crankshaft sealing ring
3. Alignment bushing
^
2 pieces
4. Left cylinder head gasket
5. Bolt
^
Tightening order
6. Left timing chain cover
^
Tightening order
7. O-ring
^
Replace
8. Left coolant intermediate pipe
^
Drive out with drift
9. O-ring
^
Replace
10. Bolt
^
Tightening order
11. Right timing chain cover
