A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2140004.png)
‹› Motronic Engine Control Module (ECM) Power Supply Relay (J271) OK.
‹› Battery voltage at least 12.5 volts.
‹› All electrical consumers such as, lights and rear window defroster, switched off.
‹› Vehicles with automatic transmission, shift selector lever into position " P" or "N".
‹› A/C switched off.
‹› Ground (GND) connections between engine/transmission/chassis OK.
‹› Ignition switched off.
Test procedure
-
Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] See: Powertrain Management/Computers and
Control Systems/Testing and Inspection/Scan Tool Testing and Procedures/Preliminary Check.
Start diagnosis
-

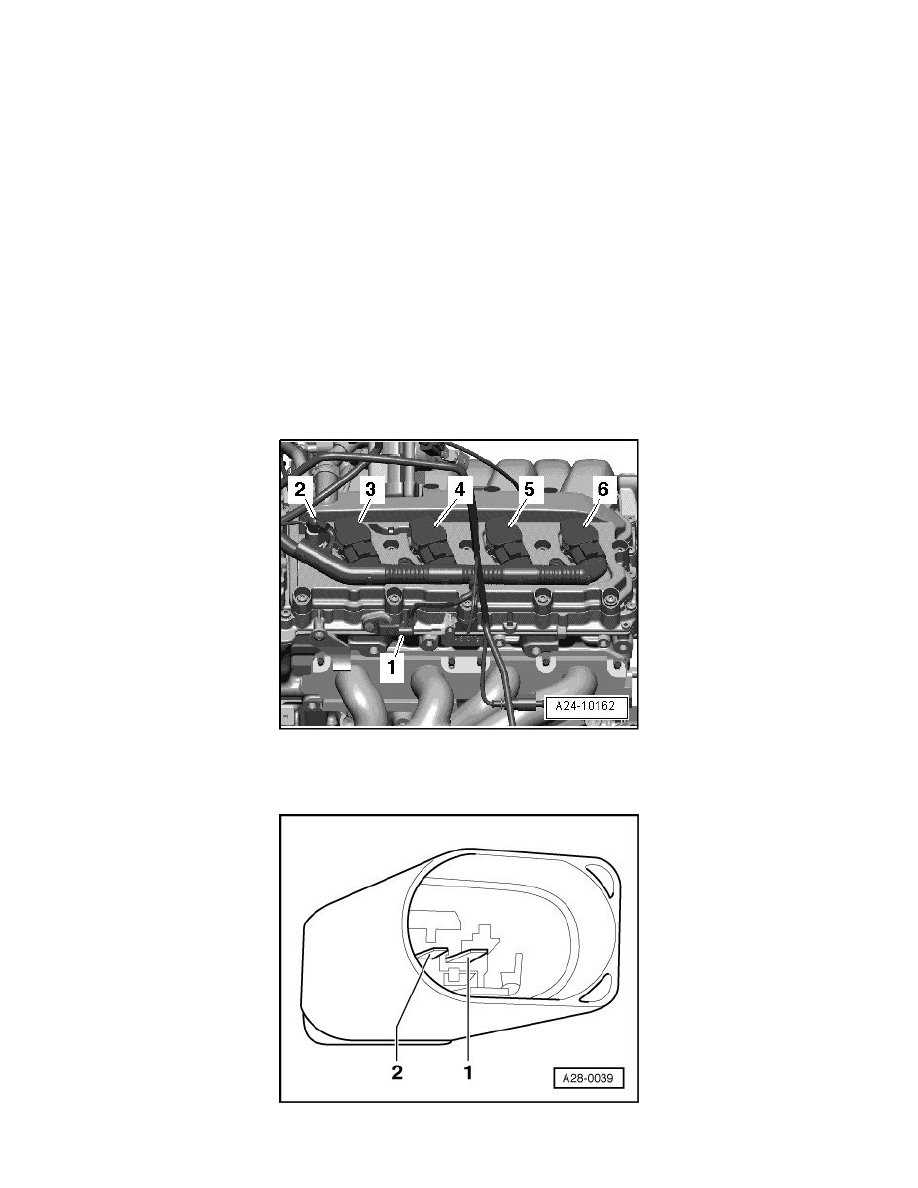

Disconnect the Camshaft Adjustment Valve 1 (exhaust) (N318) electrical harness connector - 2 -
Checking internal resistance
-
Using a Multimeter, check the Camshaft Adjustment Valve 1 (exhaust) (N318) terminals 1 to 2 for resistance.
Specified value: 5.0 to 8.0 ohms (at approx. 20° C)
