Muffler: Service and Repair

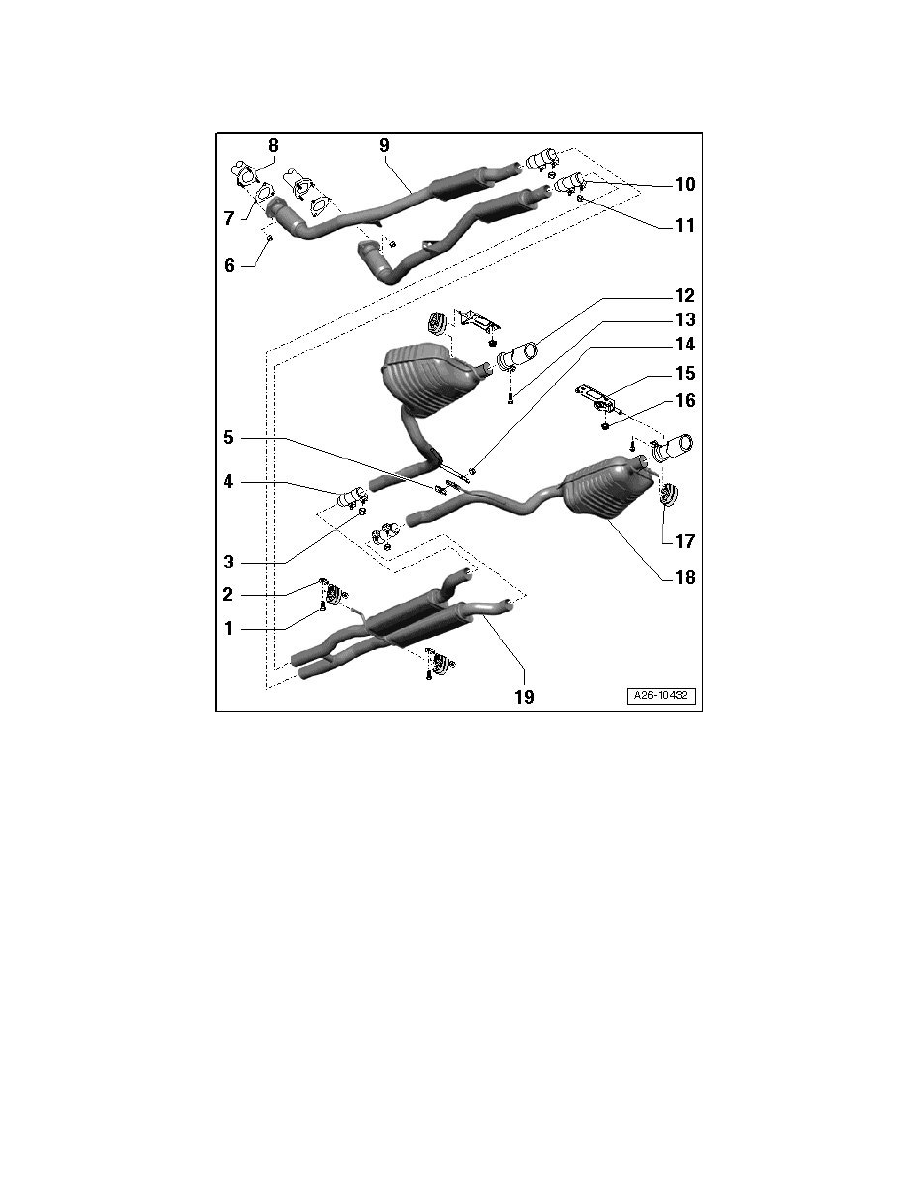

Muffler Assembly Overview

Muffler Assembly Overview

1

Bolt

‹› 23 Nm

2

Suspended mount

‹› Replace if damaged

3

Nut

‹› 23 Nm

4

Rear clamping sleeve

‹› For individual replacement of center and rear mufflers

‹› Installed location => [ Installed position of rear double clamps ]

‹› Before tightening, align exhaust system tension-free => [ Exhaust System, Installing ] See: Service and Repair/Removal and

Replacement/Exhaust System, Installing

‹› Tighten threaded connections evenly.

5

Clamping piece
