Audi Workshop Service and Repair Manuals

Clock: Service and Repair

Radio Frequency Controlled Clock Receiver, Sedan

Removing

-

Remove rear bumper cover. Refer to=> Body Exterior 63 Removal and Installation.

-

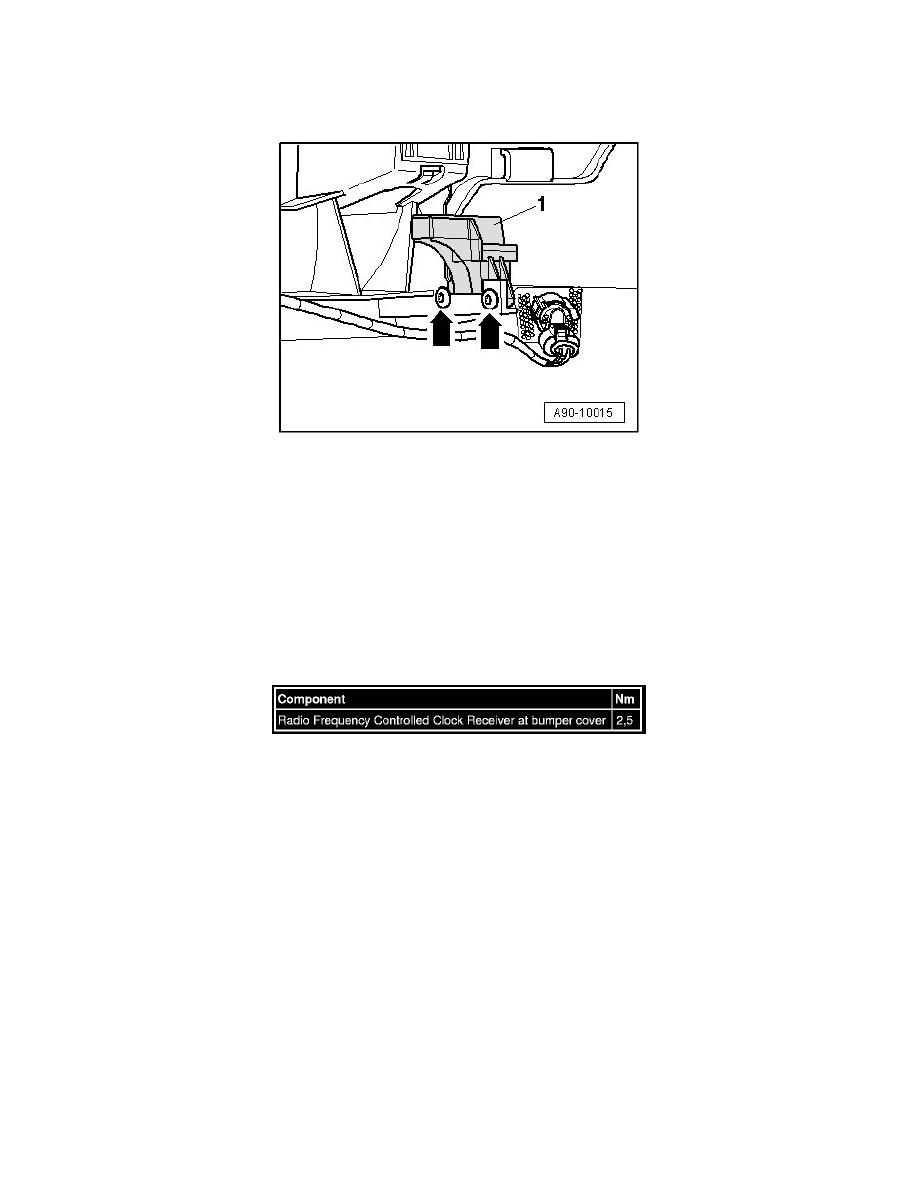

Remove screws - arrows -.

-

Remove Radio Frequency Controlled Clock Receiver (J489) - item 1 - from rear bumper cover.

Installing

Install in reverse order of removal, observing the following:

-

Install rear bumper cover. Refer to=> Body Exterior 63 Removal and Installation.

Tightening Specifications
