A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-8146002.png)

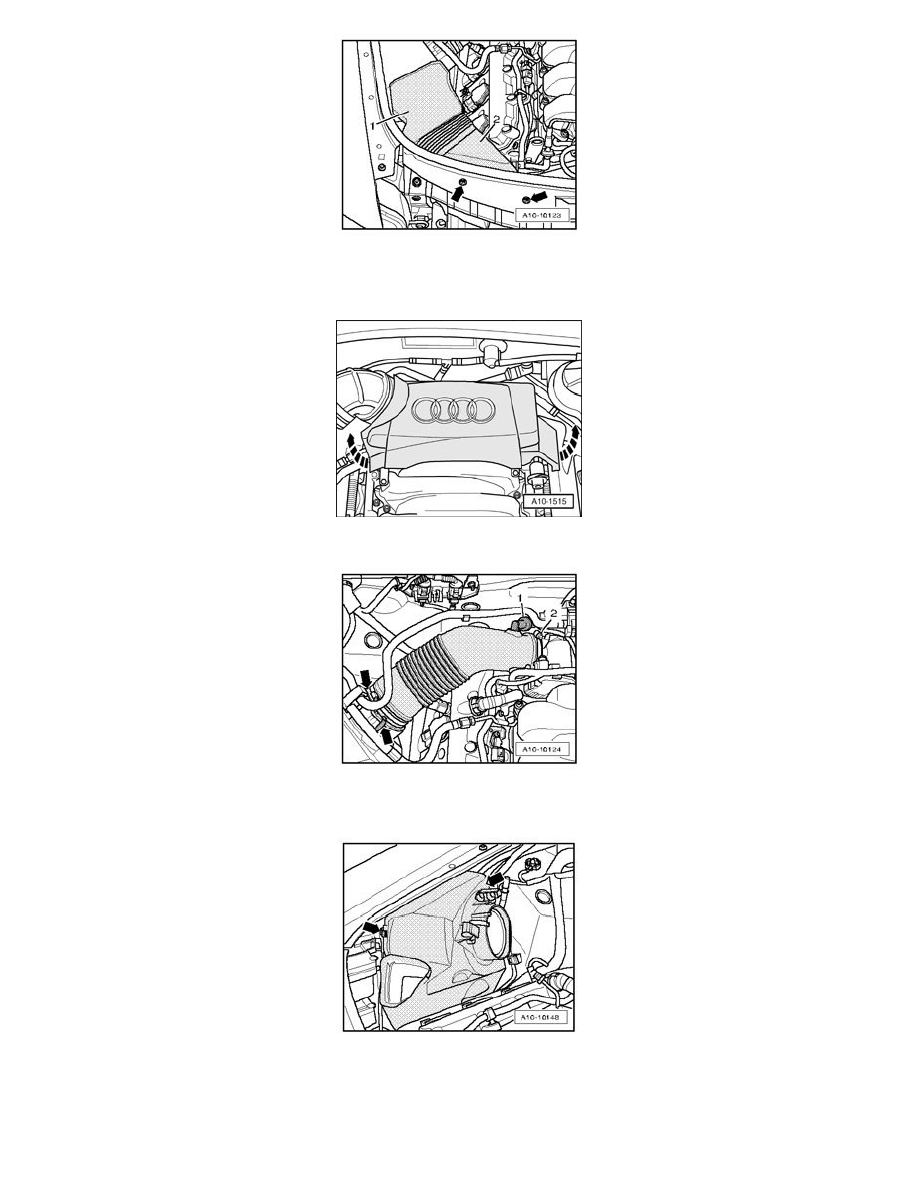

Work procedure
-
Remove bolts - arrows -.
-
Remove air guides - 1 - and - 2 -.
-
Remove rear engine cover - arrows -.
-
Pull check valve - 1 - off from air guide hose.
-
Remove air guide hose, to do so, open clips - arrows - and loosen hose clamp - 2 -.
-
Open clips - arrows - and remove upper air filter housing.
